Product Description

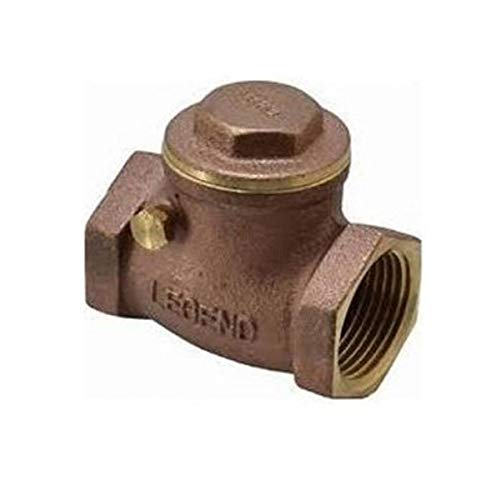

The Legend Valve 105-103NL is a 1/2 inch swing check valve perfect for plumbing applications where backflow prevention is required. This valve features a full T-pattern design with female threaded connections on both ends, making it easy to install in various plumbing systems. The body and cap are made from UNS C87850 cast brass, ensuring durability and resistance to corrosion. Rated at 200 PSI CWP, it is lead-free and compliant with NSF/ANSI 372 standards.
- Full T-pattern swing check valve
- 1/2 inch nominal size
- 200 PSI CWP rating
Product Highlights
Designed for use in potable water systems, this valve can be installed both vertically (upward flow) and horizontally. The large integral seat and disc, along with the forged brass hinge pin, ensure smooth, non-binding operation.
Product Information
Standard Information
-
Category: Check Valves
-
Material: Cast Brass
Technical Specifications
-
MPN: 105-103NL
-
Type: Swing, Full T-Pattern
-
Nominal Size: 1/2 inch
-
Connection Type: Female Threaded x Female Threaded
-
End to End Distance: 2.07 inches
-
Body Material: UNS C87850 Cast Brass
-
Disc Material: UNS C69300 Forged Brass
-
Cap Material: UNS C87850 Cast Brass
-
Pressure Rating: 200 PSI CWP
-
Inclusions/Features: Large Integral Seat and Disc, Forged Brass Hinge Pin/Pin Retaining Screw, Non-Binding Disc
-
Application: Potable Water
-
Applicable Standard: NSF/ANSI 372, ANSI/ASME B1.20.1, ISO 9002, WQA
-
Warranty: 5 years
