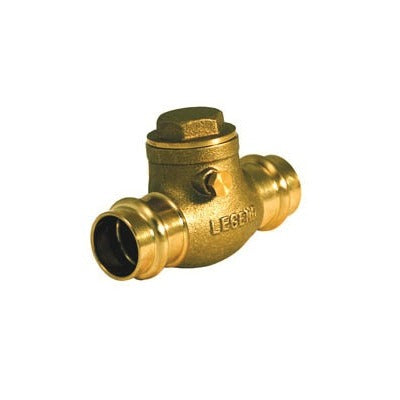

Legend Valve 105-008NL 2 Inch Press Swing Check Valve

Product Description

The LEGEND VALVE 105-008NL is a 2-inch nominal swing check valve designed for press-end installation in commercial and residential plumbing systems. The valve features a cast brass body with an EPDM rubber elastomer sealing element, providing reliable one-way flow control without the need for an external power source or manual actuation. The swing-style disc opens under forward flow pressure and closes automatically when flow stops or reverses, protecting piping systems from backflow. Licensed plumbers and pipefitters install this valve in potable water, hydronic heating, and general plumbing distribution lines.

This valve is suited for press-end piping systems where soldering or threaded connections are not preferred or permitted. The 2-inch nominal size fits standard press-fit copper and compatible press-system tubing. Its cast brass construction and EPDM elastomer make it appropriate for hot and cold water service. The press-end connection style speeds installation and reduces open-flame work on jobsites, making it a common choice for retrofit and new construction plumbing applications.

Key Features

• 2-inch nominal press-end connection for tool-based, flame-free installation
• Swing check design provides automatic backflow prevention without external controls
• Cast brass body for durability in potable water and hydronic applications
• EPDM rubber elastomer sealing element compatible with hot and cold water service
• Lead-free construction indicated by NL designation in part number

Compatibility

Designed as an OEM-style press-end swing check valve for 2-inch nominal press-fit piping systems in residential and commercial plumbing installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and depressurize the line before pressing the valve into place. Use a calibrated press tool and the correct jaw size specified for the press-system being used. Verify flow direction arrow on the valve body is oriented correctly before completing the press connection.

Technical Specifications

• Nominal Size: 2 inches
• End Style: Press
• Body Material: Cast Brass
• Elastomer Material: EPDM Rubber
• Valve Type: Swing Check
• Lead-Free Compliant: Yes (NL)
• Origin: Import

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-008NL
