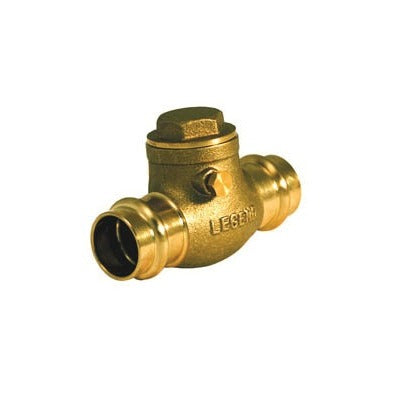

Legend Valve 105-004NL 3/4 in Press Swing Check Valve

Product Description

The LEGEND VALVE 105-004NL is a 3/4-inch swing check valve designed for press-end installation in commercial and residential plumbing systems. The valve uses an EPDM rubber elastomer disc to provide reliable one-directional flow control, preventing backflow without requiring manual operation. The body is cast brass, which offers corrosion resistance and durability in potable water and hydronic applications. This valve is suited for licensed plumbers and pipefitters working on press-fit piping systems where lead-free compliant components are required.

The 105-004NL is intended for use in press-end piping systems, making it a fit for new construction and retrofit projects where soldering is not preferred or permitted. Its swing-style check mechanism is well suited to horizontal or vertical installations in residential water distribution and light commercial hydronic lines. The lead-free cast brass construction meets requirements for use in potable water systems.

Key Features

• 3/4-inch nominal size with press end connections for tool-based, no-solder installation
• EPDM rubber elastomer disc provides flexible, reliable backflow prevention
• Cast brass body construction for corrosion resistance and long service life
• Lead-free compliant design suitable for potable water applications
• Swing check design allows low-resistance forward flow with automatic closure on reverse flow

Compatibility

Designed as an OEM-style replacement or new-installation swing check valve for 3/4-inch press-end piping systems in residential and light commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before pressing the valve into place. Use a compatible press tool and jaw set rated for the pipe material and diameter. Verify flow direction markings on the valve body before completing the press connection.

Technical Specifications

• Nominal Size: 3/4 inches
• End Style: Press
• Valve Type: Swing Check
• Elastomer Material: EPDM Rubber
• Body Material: Cast Brass
• Lead-Free: Yes

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-004NL
