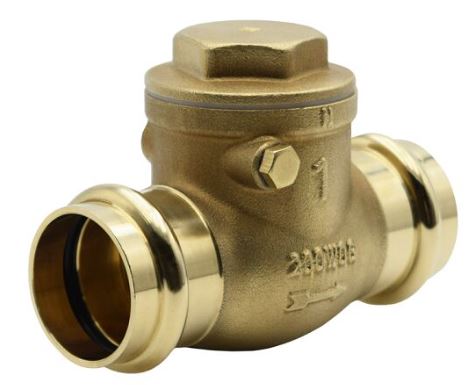

Legend Valve 105-003NL Swing Check Valve 1/2 Inch P-451NL

Product Description

The Legend Valve 105-003NL is a swing check valve designed for potable water applications. This valve features a half-inch nominal size and uses a press connection method. It is made with a cast brass body, providing durability and resistance to distortion. The pressure rating of this valve is two hundred PSI, making it suitable for various plumbing systems.

• Swing, T-pattern design for reliable flow control.
• Lead-free construction, compliant with NSF/ANSI standards.
• Easy installation with press x press end connections.

Product Highlights

This valve is ideal for ensuring one-way flow in water supply systems, helping to prevent backflow and contamination. Its lead-free material complies with safety standards for drinking water.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 105-003NL

Technical Specifications

• Type: Swing, T-Pattern
• Cap Style: Bolted
• Nominal Size: 1/2 Inch
• Body Material: UNS C87850 Cast Brass
• Disc Material: UNS C69300 Forged Brass
• Seal Material: EPDM Rubber Elastomer O-Ring
• Pressure Rating: 200 PSI CWP
• End Connection: Press x Press
• End to End Distance: 2.97 Inch
• Applicable Standard: NSF/ANSI 61G, ISO 9002, WQA
• Inclusions: Large Integral Seat and Disc, Forged Brass Hinge Pin
