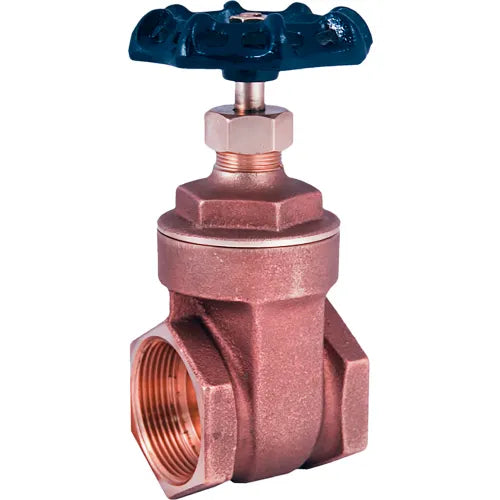

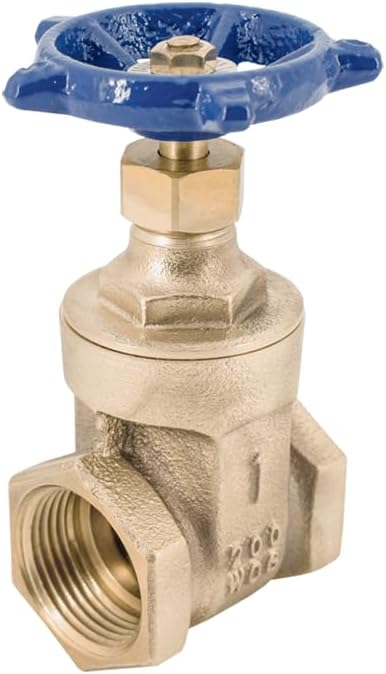

Legend Valve 104-709NL T-408NL Non-Rising Stem Gate Valve, No Lead Brass, 2-1/2 inches Threaded

Product Description

The Legend Valve 104-709NL T-408NL is a 2-1/2" non-rising stem gate valve constructed from no-lead brass, ideal for residential or commercial potable water applications. It features a full-flow waterway to reduce pressure drop and a solid, fully-guided disc-wedge that opens completely out of the flow path. The valve is third-party certified and adheres to ANSI/NSF 61 and NSI/NSF 372 standards.

• Ideal for residential or commercial potable water applications
• Durable, all-brass body construction and heavy cast iron handwheel
• Full-flow waterway reduces pressure drop, permitting consistent flow

Product Highlights

Durable brass gate valve with non-rising stem design, suitable for potable water systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-709NL
• Country of Origin: Indonesia

Technical Specifications

• Brand: Legend Valve
• PSI: 200 psi
• Ratings: 200 psi CWP
• Material: Brass
• Size: 2-1/2"
• Valve Type: Stem Gate Valve
• Configuration: FNPT x FNPT
• Connection Style: FNPT
• Package Quantity: 1
• Manufacturers Part Number: 104-709NL
• Actuator Type: Handwheel
• Body Material: Cast Brass
• Domestic/Import: Import
• End Style: FNPT
• Hand Wheel Diameter: 4.02 in
• Inlet to Outlet Length: 3.7 in
• Nominal Size: 2-1/2 in
• Pressure Rating: 200 psi CWP
• Series: T-408NL
• Top to Inlet Center: 6.9 in
• Trim Material: Brass
• Country of Origin: Indonesia
• Standards: 200 CWP
• Model: 104-709NL
• Standard Approvals: ANSI B1.20.1, ASME B1.20.1/B16.18, ASTM B806 UNS C89540, IAPMO file No 6127, ISO Certified
