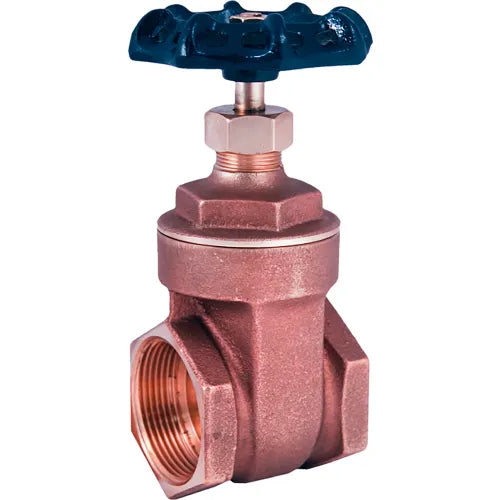

Legend Valve 104-707NL T-408nl Non-Rising Stem Gate Valve 1-1/2 inches Threaded

Product Description

The Legend Valve 104-707NL T-408nl is a non-rising stem gate valve ideal for residential or commercial potable water applications. It features a durable, all-brass body construction and a heavy cast iron handwheel. The full-flow waterway reduces pressure drop, permitting consistent flow. The solid, fully-guided disc-wedge opens completely out of the flow path.

• Ideal for residential or commercial potable water applications
• Durable, all-brass body construction and heavy cast iron handwheel
• Full-flow waterway reduces pressure drop, permitting consistent flow

Product Highlights

This lead-free brass gate valve with FNPT connections is suitable for water applications, offering reliable performance and durability.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-707NL
• Country of Origin: Indonesia

Technical Specifications

• PSI: 200 psi
• Brand: Legend Valve
• Ratings: 200 psi CWP
• Material: Brass
• Size: 1-1/2
• Valve Type: Stem Gate Valve
• Configuration: FNPT x FNPT
• Connection Style: FNPT
• Manufacturers Part Number: 104-707NL
• Actuator Type: Handwheel
• Body Material: Brass
• End Style: FNPT
• Hand Wheel Diameter: 3.11 in
• Inlet to Outlet Length: 2.44 in
• Media: Water
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 200 psi
• Series: T-408NL
• Softgoods Material: Graphite Stem Packing
• Top to Inlet Center: 5.08 in
• Trim Material: Brass
• Type: Economy
• Pipe Size: 1 1/2"
• Standards: 200 CWP
• WOG Rating: 200 psi
• Stem Type: Non-Rising
• Valve Operation: Manual
• Valve Class: Class 125
• Diameter: 1 1/2 in
• WSP Rating: 200 psi
