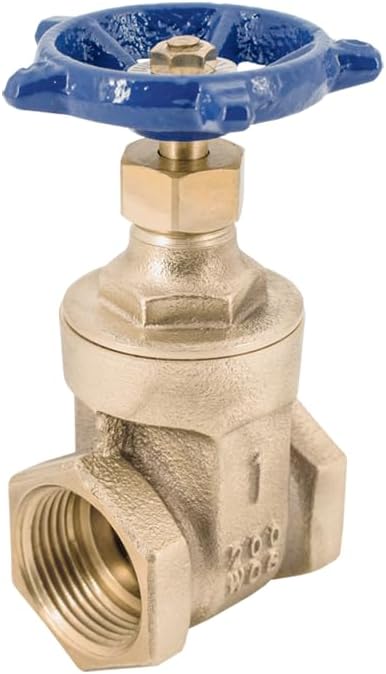

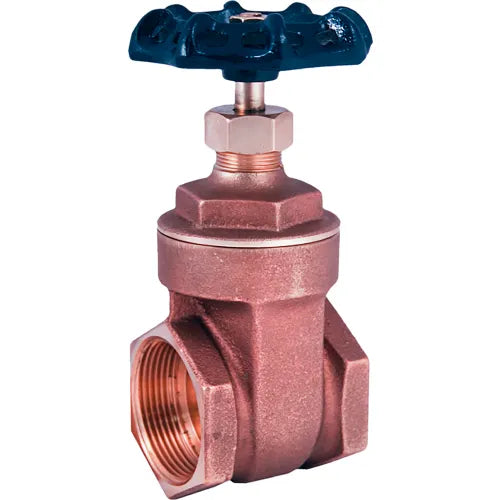

Legend Valve 104-706NL T-408NL Non-Rising Stem Gate Valve 1-1/4 inches Threaded

Product Description

The Legend Valve 104-706NL T-408NL is a no lead brass economy gate valve with a 1-1/4" threaded connection. It is ideal for residential or commercial potable water applications. The valve features a durable, all-brass body construction and a heavy cast iron handwheel. Designed with a full-flow waterway to reduce pressure drop, permitting consistent flow.

• Ideal for residential or commercial potable water applications
• Durable, all-brass body construction and heavy cast iron handwheel
• Full-flow waterway reduces pressure drop, permitting consistent flow

Product Highlights

This gate valve features a non-rising stem design that is compact and reliable, with integral seats precision-ground to match each disc-wedge.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-706NL
• Country of Origin: Indonesia

Technical Specifications

• Brand: Legend Valve
• PSI: 200 psi
• Ratings: 200 psi CWP
• Material: Brass
• Size: 1-1/4"
• Valve Type: Stem Gate Valve
• Configuration: FNPT x FNPT
• Connection Style: FNPT
• Package Quantity: 1
• Manufacturers Part Number: 104-706NL
• Actuator Type: Handwheel
• Body Material: Brass
• Domestic/Import: Import
• End Style: FNPT
• Hand Wheel Diameter: 2.76 in
• Inlet to Outlet Length: 2.24 in
• Media: Water
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 200 psi
• Series: T-408NL
• Softgoods Material: Graphite Stem Packing
• Top to Inlet Center: 4.61 in
• Trim Material: Brass
• Type: Economy
• Manufacturer: Legend Valve
• Item model number: T-408NL
• Standards: 200 CWP
• Application Type: For Non-Steam use in Residential Applications
• Standard Approvals: ANSI/ASME B1.20.1 and ASME B16.18, cUPC/IAPMO 6127, ISO 9002 Certified, NSF 61-G
