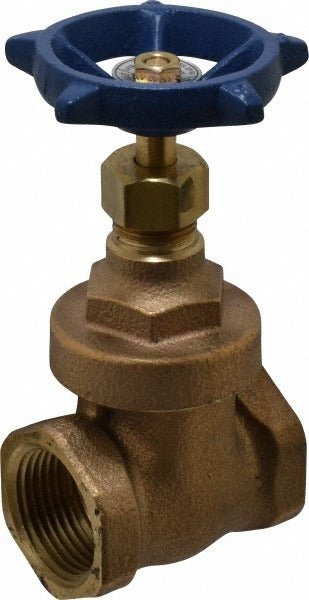

Legend Valve 104-655 Bronze Gate Valve 1 in Threaded

Product Description

The LEGEND VALVE 104-655 is a bronze gate valve with a non-rising stem design, built for full-bore shutoff in threaded pipe systems. The solid wedge disc and screw-over bonnet construction provide reliable sealing in a compact, durable package. At 1 inch pipe size with threaded end connections, this valve is a standard choice for plumbing, hydronic heating, and general water distribution applications. Licensed plumbers and pipefitters install this type of valve where manual isolation is required and stem travel clearance is limited. The bronze body resists corrosion in potable water and low-pressure fluid systems.

This gate valve is suited for residential and light commercial plumbing installations where a 1 inch threaded shutoff is needed. Common install locations include water supply mains, boiler piping, and branch isolation points. The non-rising stem configuration makes it well-suited for tight mechanical spaces, wall chases, and panel installations where a rising stem would create clearance conflicts. The screw-over bonnet allows field repacking of the stem without removing the valve from the line.

Key Features

• Non-rising stem design suits confined spaces where vertical clearance is restricted
• Solid wedge disc provides positive shutoff and reduced leak paths
• Screw-over bonnet allows stem packing service without line removal
• Bronze body resists corrosion in potable water and hydronic fluid applications
• Threaded end connections for standard NPT pipe assembly

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 1 inch threaded pipe systems in residential and commercial plumbing and hydronic heating applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing codes. Shut off system pressure and drain the line before installation or removal. Use thread sealant or PTFE tape rated for the service fluid on all NPT connections. Avoid over-tightening threaded joints, which can stress the bronze body and distort the seat.
