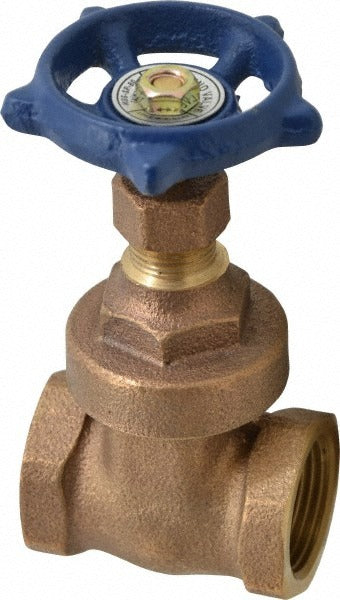

Legend Valve 104-654 Bronze Gate Valve 3/4 in Threaded

Product Description

The LEGEND VALVE 104-654 is a 3/4 inch bronze gate valve designed for full-bore isolation service in residential and light commercial plumbing systems. It features a non-rising stem design and a screw-over bonnet with a solid wedge disc, making it well suited for installations where vertical clearance above the valve is limited. The threaded end connections allow for straightforward installation into standard NPT piping. Licensed plumbers and pipefitters are the typical installers for this type of valve in domestic water, HVAC hydronic, and general fluid-handling applications.

This valve is commonly used in residential water supply lines, hydronic heating systems, and commercial plumbing where a reliable shutoff is required in a compact footprint. The 3/4 inch pipe size fits a wide range of common branch and main line configurations. The bronze body provides corrosion resistance suitable for potable water and moderate-temperature hydronic service. The non-rising stem keeps the overall installed height consistent whether the valve is open or closed, which is an advantage in tight mechanical spaces.

Key Features

• Non-rising stem design maintains consistent installed height in open and closed positions
• Solid wedge disc provides positive shutoff and reliable seating
• Screw-over bonnet allows field access for repacking without removing the valve from the line
• Bronze body construction offers corrosion resistance for water and hydronic fluid service
• Threaded end connections for standard NPT installation
• 3/4 inch pipe size fits common residential and light commercial plumbing configurations

Compatibility

Designed as a standard OEM-style replacement or new-installation gate valve for 3/4 inch threaded NPT plumbing systems in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the upstream water supply and relieve system pressure before installing or replacing this valve. Use appropriate thread sealant or PTFE tape on all NPT connections and verify joint integrity before restoring flow. Do not overtighten threaded fittings, as bronze threads can be damaged by excessive force.
