Legend Valve 104-617 T416 Rising Stem Gate Valve 1-1/2 inch 300 psi CWP

Product Description

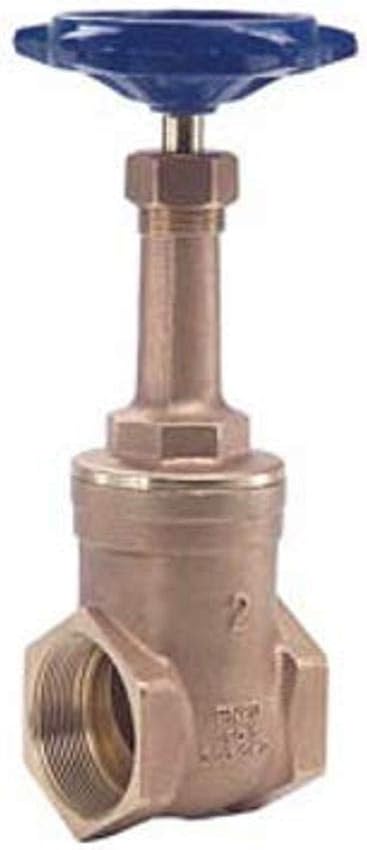

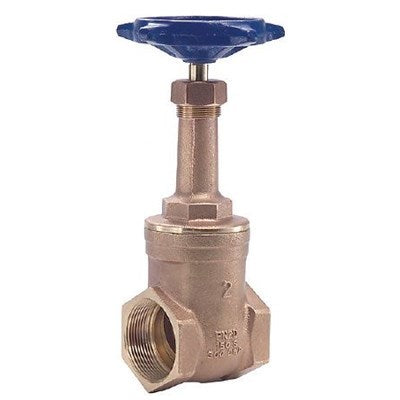

The LEGEND VALVE 104-617 is a T-416 series rising stem gate valve, ideal for commercial or industrial water or steam applications. This 1-1/2 inch nominal valve features an FNPT end style and a durable cast bronze body with brass trim. It is rated for 300 psi CWP pressure and operates within a temperature range of 0 to 450 deg F. The handwheel-actuated rising stem design provides a clear visual indication of the internal disc-wedge position, while its full-flow waterway minimizes pressure drop.

• Integral seats are precision-ground to match each disc-wedge, enhancing the drip-tight seal.
• Rising stem design provides a quick, external visual reference to the internal disc-wedge position.
• Solid, fully-guided disc-wedge rises completely out of the flow path and has a broad sealing area that resists mineral build-up.

Product Highlights

Features a cast bronze body, FNPT end style, and a rising stem design for clear visual indication of valve position, suitable for high-pressure and temperature applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-617
• Country of Origin: Imported

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Bronze
• End Style: FNPT
• Hand Wheel Diameter: 4.61 in
• Inlet to Outlet Length: 2.68 in
• Nominal Size: 1-1/2 in
• Pressure Rating: 300 psi CWP
• Series: T-416
• Softgoods Material: PTFE Stem Packing
• Temperature Rating: 0 to 450 deg F
• Top to Inlet Center: 8.74 in
• Trim Material: Brass
• Type: Rising Stem
• WSP Pressure: 150
