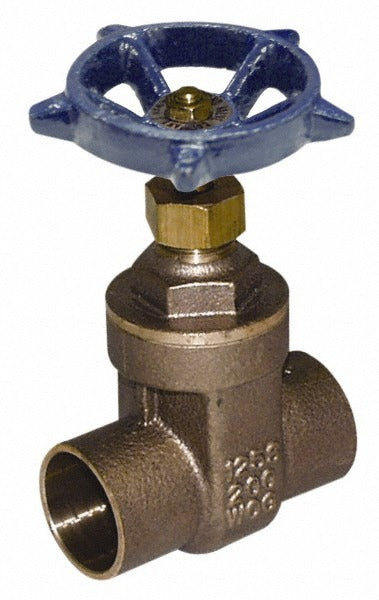

Legend Valve 104-607 Bronze Gate Valve 1-1/2 in Soldered

Product Description

The LEGEND VALVE 104-607 is a bronze gate valve designed for full-bore shutoff in plumbing and hydronic piping systems. Built with a non-rising stem and screw-in bonnet, it provides reliable isolation where vertical clearance above the valve is limited. The solid wedge disc delivers positive sealing across the full range of shutoff applications. Sized for 1-1/2 inch pipe with a soldered end connection, this valve is a common choice for copper-pipe distribution systems in residential and light commercial installations. It weighs 1.59 pounds. Licensed plumbers and pipefitters are the primary installers.

This gate valve is suited for plumbing supply lines, hydronic heating distribution, and general water service piping using 1-1/2 inch copper tubing. The soldered connection is compatible with standard sweat-fit copper pipe assembly practices. The non-rising stem design makes it appropriate for installations in tight mechanical rooms, chases, or wall cavities where stem travel space is constrained. It is sold individually.

Key Features

• Non-rising stem design for use in space-constrained installations
• Solid wedge disc for positive full-closure sealing
• Screw-in bonnet for straightforward field service access
• Soldered end connection compatible with 1-1/2 inch copper pipe
• Bronze body construction for corrosion resistance in water service applications

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 1-1/2 inch copper piping systems using soldered end connections in plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC and local plumbing code requirements. Shut off the water supply and fully depressurize and drain the line before soldering. Use standard sweat-fit technique with lead-free solder and flux rated for potable water systems where required by code. Allow the valve body to cool completely before pressurizing the system and checking for leaks.
