LEGEND VALVE 104-605 1 S-415 Gate Valve 200 psi CWP 125 lb

Product Description

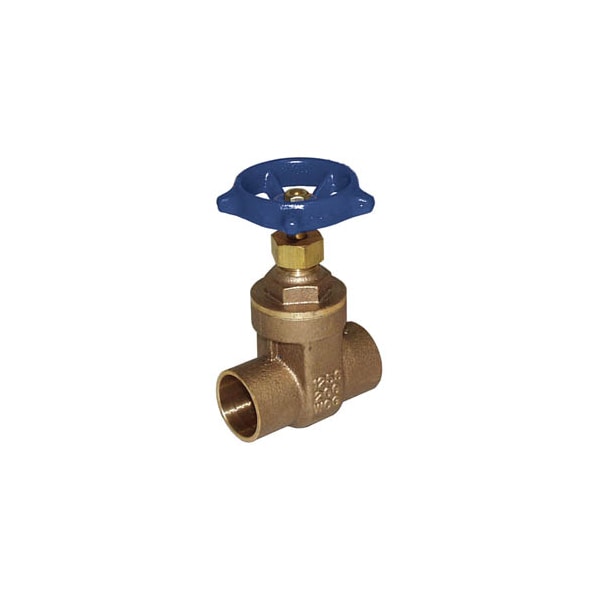

The LEGEND VALVE 104-605 is a 1 inch S-415 gate valve designed for commercial and industrial applications. This valve features a cast bronze body and brass trim, ensuring durability and resistance to pipeline stresses.

• Non-rising stem design with oversized packing
• Integral seats precision-ground for drip-tight sealing
• Heavy-duty hand wheel minimizes heat transfer to the operator

Product Highlights

The gate valve is suitable for water and steam applications. It meets ANSI and ASME standards and offers a 5-year warranty.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• Series: S-415

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Bronze
• Trim Material: Brass
• End Style: C x C
• Nominal Size: 1 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi CWP
• Hand Wheel Diameter: 2.76 in
• Inlet to Outlet Length: 2.76 in
• Top to Inlet Center: 3.86 in
• Softgoods Material: NBR Stem Packing
