LEGEND VALVE 104-507 1-1/2 T-415 GATE VALVE FNPT x FNPT

Product Description

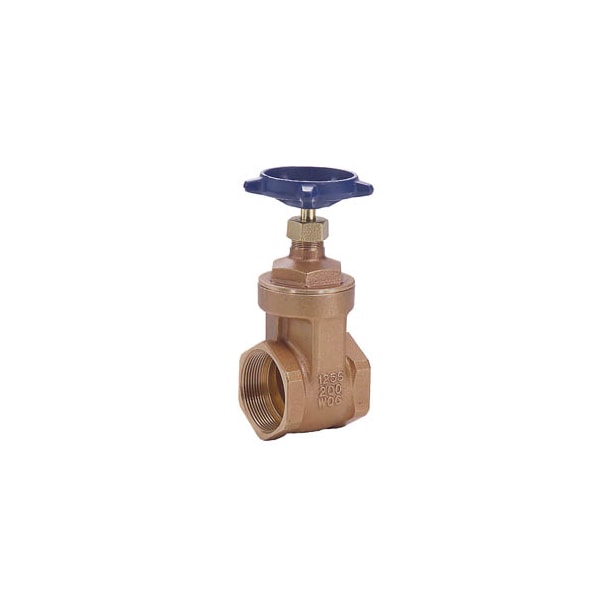

LEGEND VALVE 104-507 is a T-415 series gate valve. It features FNPT end styles designed for reliable performance in various plumbing applications. This valve has a nominal size of one and one-half inches and supports a maximum pressure rating of two hundred psi. The durable construction ensures long-lasting use.

• Constructed from cast bronze with brass trim.
• Handwheel actuator design for ease of operation.
• Precision-ground integral seats for a leak-tight seal.

Product Highlights

This valve is suitable for commercial and industrial water and steam applications.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• UPC: 662545001487

Technical Specifications

• Model: T-415
• Nominal Size: 1-1/2 in
• End Style: FNPT
• Body Material: Cast Bronze
• Trim Material: Brass
• Pressure Rating: 200 psi CWP
• Pressure Class: 125 lb
• Actuator Type: Handwheel
• Inlet to Outlet Length: 2.44 in
• Top to Inlet Center: 4.93 in
• Hand Wheel Diameter: 3.27 in
• Softgoods Material: NBR Stem Packing
• Domestic/Import: Import
