LEGEND VALVE 104-505 1 T-415 GATE VALVE FNPT x FNPT

Product Description

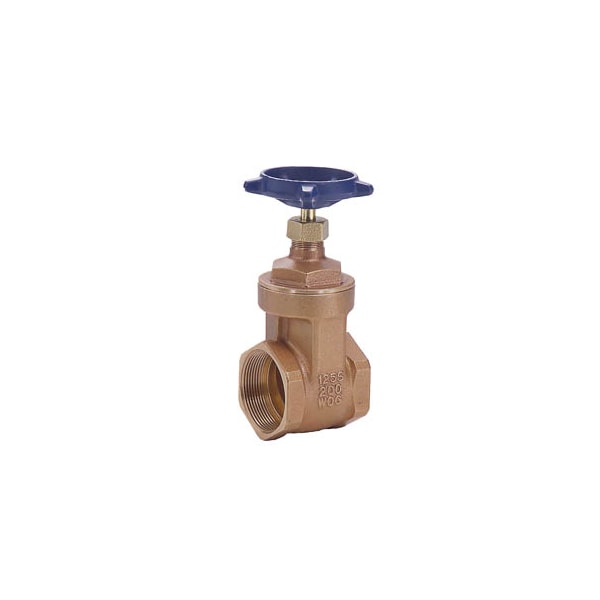

LEGEND VALVE presents the 104-505 1 T-415 Gate Valve, designed for water and steam applications. This valve features FNPT end styles and operates at a maximum pressure rating of 200 psi CWP. The valve’s robust construction ensures durability and reliability in various commercial and industrial settings.

• Body made of cast bronze for strength
• Handwheel actuator for easy operation
• Precision-ground integral seats ensure a leak-tight seal

Product Highlights

This product is ideal for controlling the flow of water or steam in piping systems.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• UPC: 662545001463

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Bronze
• Domestic/Import: Import
• End Style: FNPT
• Hand Wheel Diameter: 2.76 inches
• Inlet to Outlet Length: 2.13 inches
• Nominal Size: 1 inch
• Pressure Class: 125 lb
• Pressure Rating: 200 psi CWP
• Series: T-415
• Softgoods Material: NBR Stem Packing
• Top to Inlet Center: 3.86 inches
• Trim Material: Brass
