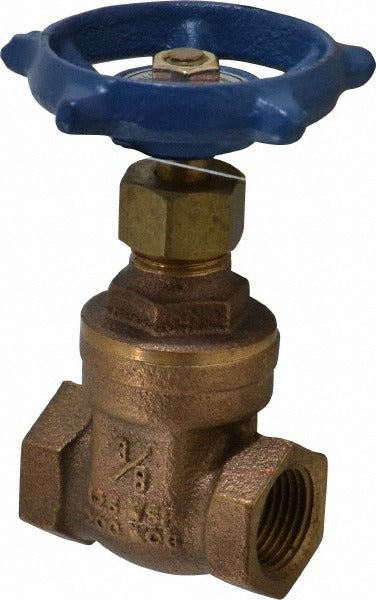

Legend Valve 104-502 Bronze Gate Valve 3/8 Inch Threaded

Product Description

The LEGEND VALVE 104-502 is a non-rising stem bronze gate valve designed for 3/8 inch threaded pipe connections. It features a solid wedge disc and a screw-in bonnet construction, making it a compact and reliable shutoff solution for plumbing and fluid control systems. The bronze body offers corrosion resistance in water service applications. This valve is typically installed by licensed plumbers and pipefitters in residential and light commercial systems where full-bore shutoff and low-pressure-drop flow are required. At 0.73 pounds, it is lightweight and easy to handle during installation.

This gate valve is suited for residential and light commercial plumbing applications where a dependable inline shutoff is needed on small-diameter pipe runs. The threaded end connection allows for straightforward installation into standard NPT-threaded systems. The non-rising stem design keeps the overall installed height compact, making it a practical choice in tight spaces such as under-sink installations, branch line shutoffs, and equipment isolation points.

Key Features

• Non-rising stem design keeps installed height low in confined spaces
• Bronze body provides corrosion resistance for water and fluid service
• Solid wedge disc delivers positive shutoff with minimal leakage
• Screw-in bonnet for straightforward field servicing
• 3/8 inch threaded (NPT) end connection for standard pipe fitment
• Lightweight at 0.73 pounds for easy single-hand installation

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 3/8 inch NPT threaded pipe systems in residential and light commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before removing or installing this valve. Use appropriate thread sealant or PTFE tape on all threaded connections. Do not over-torque the bonnet or packing nut, as bronze fittings can be damaged by excessive force.
