Legend Valve 104-478NL S-400 No Lead Gate Valve 2 inches

Product Description

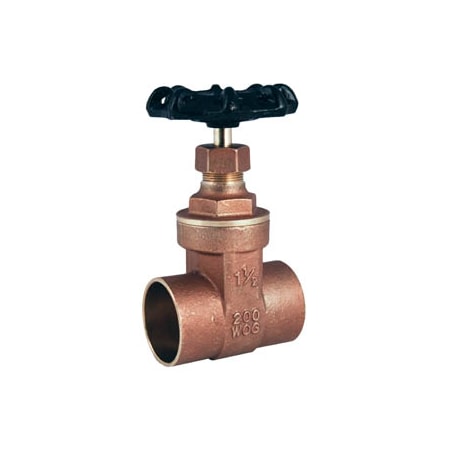

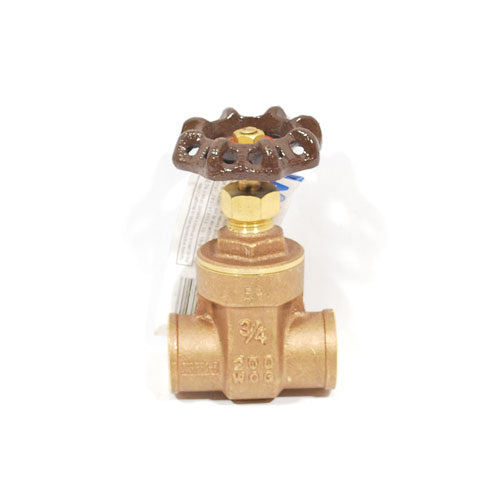

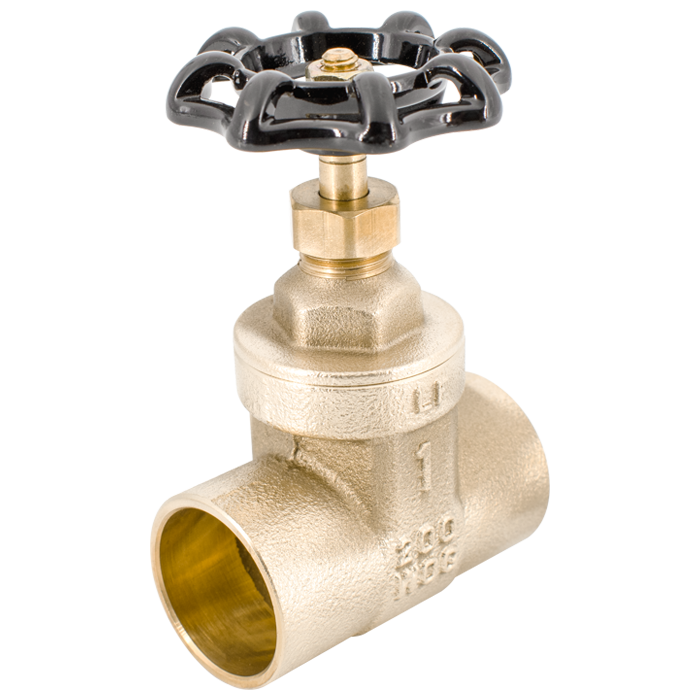

The LEGEND VALVE 104-478NL is a compact pattern, no lead gate valve from the S-400NL series. Featuring a durable, all-brass body construction and a non-rising stem design, this 2-inch valve is compact and reliable. It has integral seats precision-ground to match each disc-wedge. Designed for potable water applications.

• Durable, all-brass body construction
• Non-rising stem design is compact and reliable
• Integral seats are precision-ground to match each disc-wedge

Product Highlights

Compact, reliable, and lead-free gate valve for potable water applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-478NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: C x C
• Hand Wheel Diameter: 3.03 in
• Inlet to Outlet Length: 3-1/2 in
• Nominal Size: 2 in
• Pressure Rating: 200 psi CWP
• Series: S-400NL
• Softgoods Material: NBR Stem Packing
• Temperature Rating: 200 deg F
• Top to Inlet Center: 4.92 in
• Trim Material: Forged Brass
• Type: Compact Pattern
• Manufacturer: LEGEND VALVE
• Product Type: Gate Valve
• Material: Brass
• Connection Type: Sweat x Sweat
