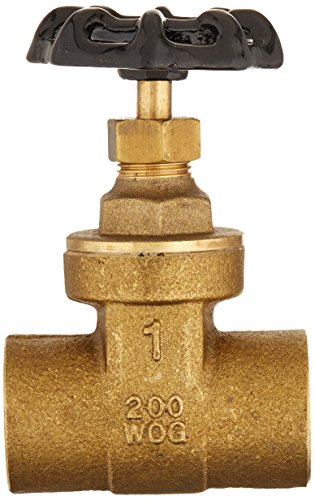

Legend Valve 104-475NL S-400 No Lead Brass Gate Valve, 1 inches

Product Description

The Legend Valve 104-475NL S-400 is a no-lead brass gate valve with a 1-inch nominal size. Features a durable, all-brass body construction and a non-rising stem design that is compact and reliable. Integral seats are precision-ground to match each disc-wedge. Suitable for all California and Vermont Potable Water Applications.

• Durable, all-brass body construction
• Non-rising stem design is compact and reliable
• Integral seats are precision-ground to match each disc-wedge

Product Highlights

This lead-free gate valve is ideal for potable water applications, providing a reliable shutoff with its compact design.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-475NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Product Type: VALVE
• Manufacturer: LEGEND VALVE
• Brand: Legend Valve
• Model / MPN: 104-475NL
• Actuator Type: Handwheel
• Body Material: Cast Brass
• Domestic/Import: Import
• End Style: C x C
• Hand Wheel Diameter: 2.13 in
• Inlet to Outlet Length: 2.48 in
• Nominal Size: 1 in
• Pressure Rating: 200 psi CWP
• Series: S-400NL
• Softgoods Material: NBR Stem Packing
• Temperature Rating: 200 deg F
• Top to Inlet Center: 3.31 in
• Trim Material: Forged Brass
• Type: Compact Pattern
• Size [Specifications]: 1"
• Pipe Size [Specifications]: 1"
• Standards [Specifications]: 200 CWP
• Body Material [Specifications]: Brass
• Connection Type [Specifications]: Sweat x Sweat
