Legend Valve 104-410 3 inches S-401 Gate Valve

Product Description

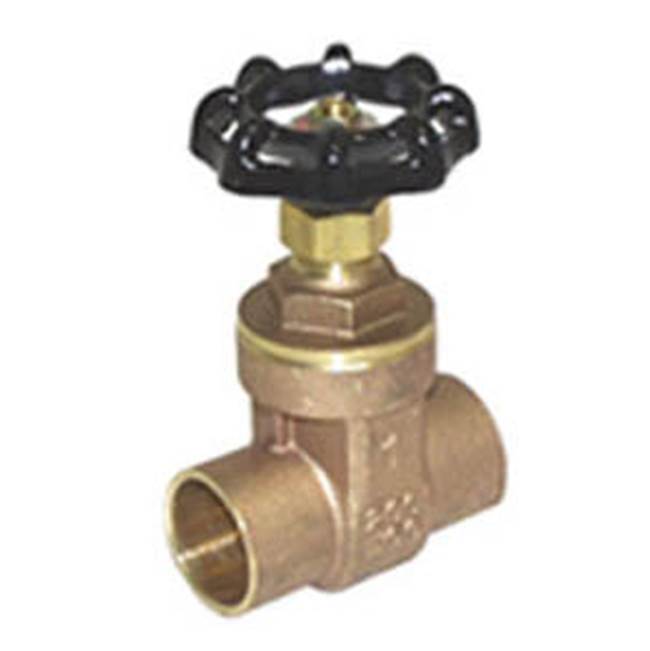

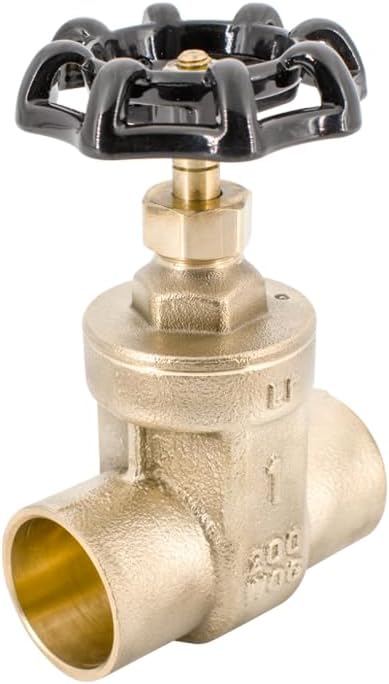

The Legend Valve 104-410 is a 3" S-401 gate valve with a brass body. It is designed for use with water, oil, and gas in residential and commercial applications. The valve features a full port, non-rising stem design, and integral seats. It is suitable for non-steam use.

• Durable, all brass body construction and heavy cast iron handwheel
• Full flow waterway reduces pressure drop, permitting consistent flow
• Non-rising stem design is compact and reliable

Product Highlights

This Legend Valve gate valve is ideal for potable water, oil, and gas applications. Its full port design ensures consistent flow.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 104-410
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: C
• Hand Wheel Diameter: 5.12 in
• Inlet to Outlet Length: 5.2 in
• Media: Water
• Nominal Size: 3 in
• Port Type: Full
• Pressure Rating: 200 psi
• Series: S-401
• Softgoods Material: NBR Stem Packing
• Top to Inlet Center: 8.74 in
• Trim Material: Forged Brass
• Size: 3"
• Pipe Size: 3"
• Standards: 200 CWP
• Connection Type: Sweat x Sweat
• Application: POTABLE WATER, OIL, GAS, RESIDENTIAL, COMMERCIAL
• Inclusions/Features: INTEGRAL SEAT
• End Connection: FEMALE SOLDERED X FEMALE SOLDERED
• Handle Material: ASTM A48 CLASS 35 CAST IRON
• End to End Distance: 5.18 INCH
• Stem Material: FORGED BRASS
• Design: NON-RISING STEM
• Bonnet Type: THREADED
• Bonnet Material: CAST BRASS
• Wedge Material: CAST BRASS
• Model: S-401
• Product Type: Gate Valve
