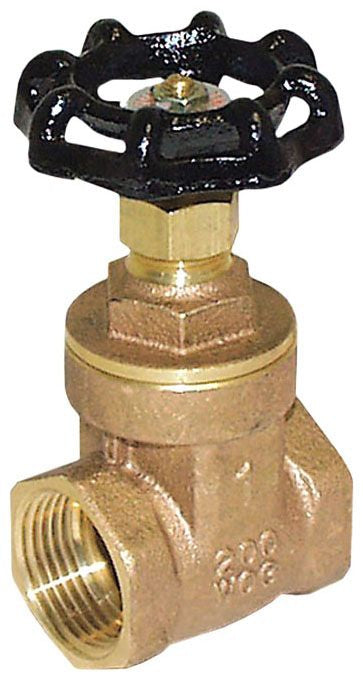

Legend Valve 104-309 T-401 Brass Gate Valve 2-1/2 Inch FNPT

Product Description

The Legend Valve 104-309 is a high-quality brass gate valve designed for residential and commercial potable water applications. Manufactured with precision, it features a non-rising stem, handwheel actuation, and a solid wedge disc.

• Robust cast brass body ensures durability and longevity.
• Efficient non-rising stem design saves space and enhances reliability.
• Easy operation through a heavy cast iron handwheel.

Product Highlights

This gate valve offers exceptional flow control and is built to withstand a pressure rating of 200 PSI. Its full-flow waterway design minimizes pressure drop, facilitating consistent performance.

Product Information

Standard Information

• Brand: Legend Valve
• Model: 104-309 T-401

Technical Specifications

• Type: Wedge Disc
• Size: 2-1/2 inch FNPT x FNPT
• Material: Cast Brass Body, Forged Brass Trim
• Pressure Rating: 200 PSI CWP
• Standards: ANSI/ASME B1.20.1, B16.18, NSF/ANSI 61-8, ISO 9002
• Inclusions: Integral Seat, AISI 1010 Handwheel Nut, NBR Stem Packing
