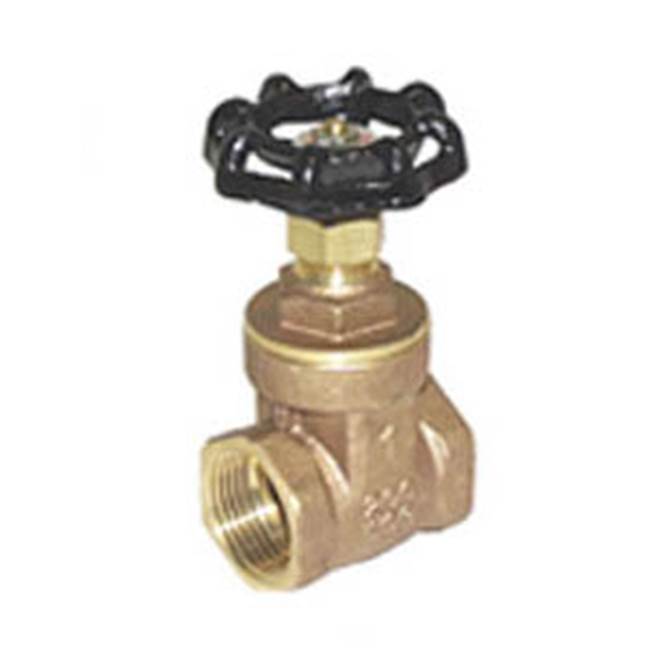

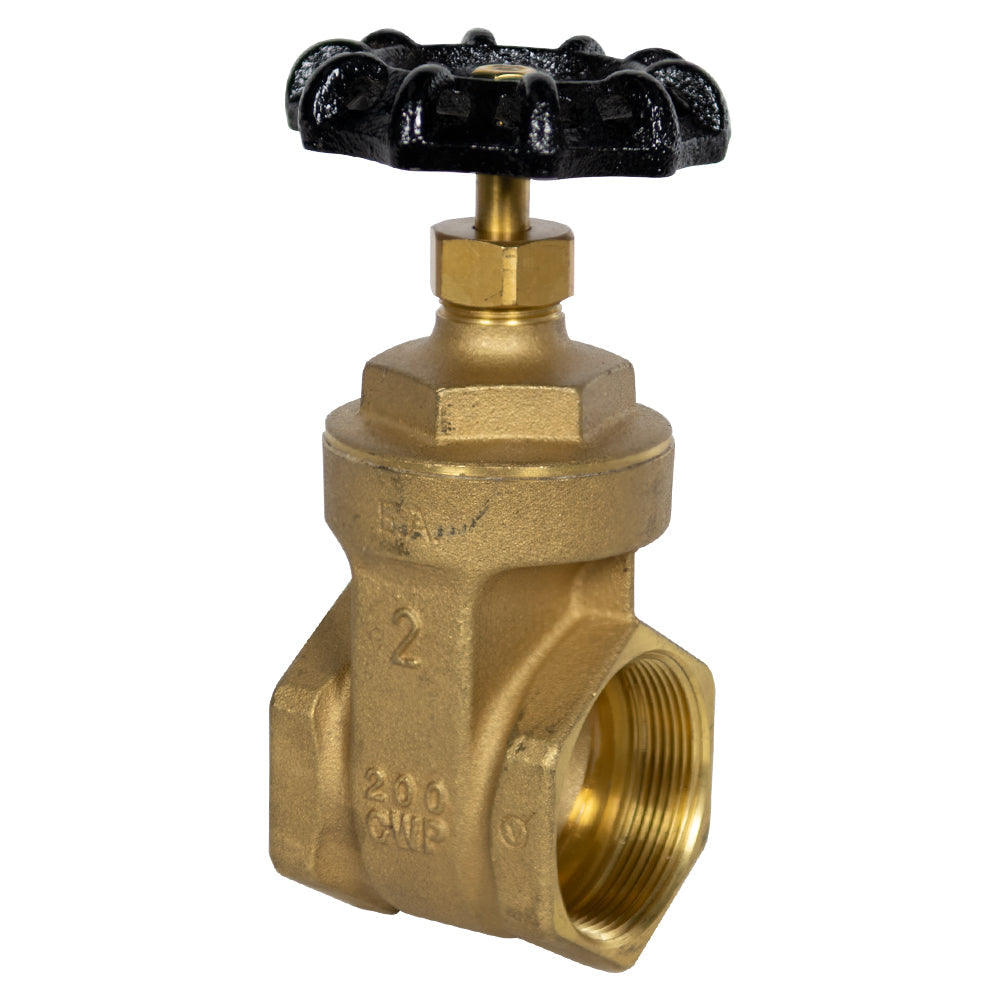

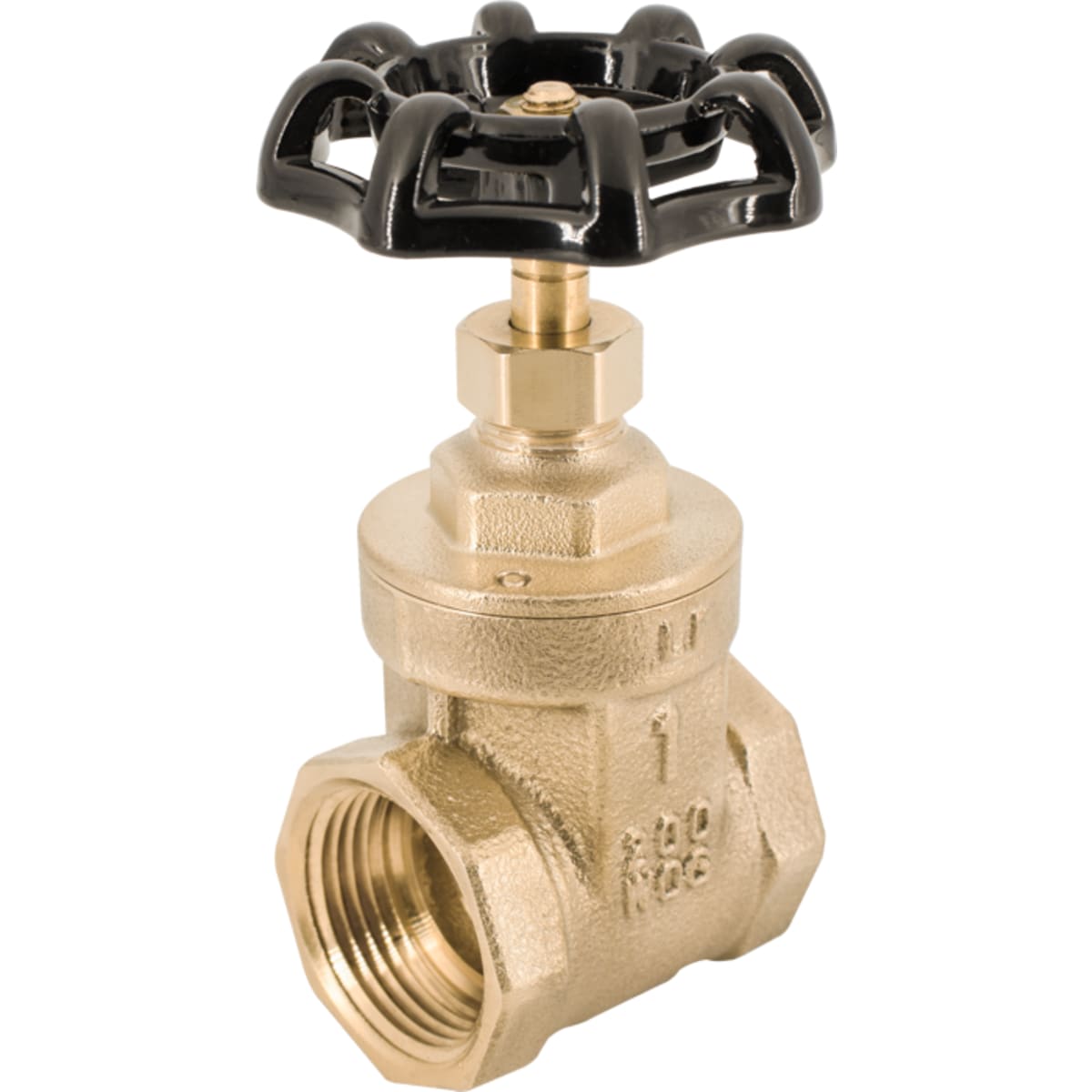

Legend Valve 104-308 T-401 Gate Valve 2 in (FNPT x FNPT) LEGE-104-308

Product Description

Legend Valve 104-308 is a 2 in T-401 gate valve designed for flow shutoff in plumbing systems. The valve has a cast brass body with forged brass trim, FNPT x FNPT connections, a non-rising stem with NBR stem packing, and a heavy handwheel (3.27 in diameter). It is rated 200 psi CWP and 200 deg F, features a solid fully-guided disc-wedge with precision-ground seats, and meets potable water standards including ANSI/NSF 61.

• Cast brass body with forged brass trim, non-rising stem and NBR stem packing
• 2 in nominal size with FNPT x FNPT (female) threaded connections; 200 psi CWP rating
• Solid fully-guided disc-wedge, precision-ground integral seats, heavy handwheel (3.27 in)

Product Highlights

2 in FNPT x FNPT gate valve for residential and commercial potable water shutoff; 200 psi CWP, 200�F rating; ANSI/NSF 61 and related ASTM/ANSI standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-308
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-308
• Series: T-401
• Size: 2 in
• Nominal Size: 2 in
• Connection Type: FNPT x FNPT
• Pressure Rating: 200 psi CWP
• Temperature Rating: 200 deg F
• Body Material: Cast brass
• Trim Material: Forged brass
• Stem Packing: NBR stem packing
• Stem Type: Non-rising stem
• Actuator Type: Handwheel
• Hand Wheel Diameter: 3.27 in
• Inlet to Outlet Length: 2.84 in
• Top to Inlet Center: 6.02 in
• Bonnet: Inserted bonnet
• Disc Type: Solid, fully-guided disc-wedge
• Seats: Integral precision-ground seats
• Weight Each: 2.98 lb
• Each Dimensions (L x W x H): 3.05 x 7.15 x 3 in
• Certifications: ANSI/ASME B1.20.1/B16.18; ASTM B16 UNS C36000/B124 UNS C37700/B584 UNS C85700; ISO 9002; Truesdail Labs Certified to ANSI/NSF 61-8; ANSI 372
• Country of Origin: Taiwan, Province of China
• UPC: 662545001685
• Alternate Part Number: LEGE-104-308
