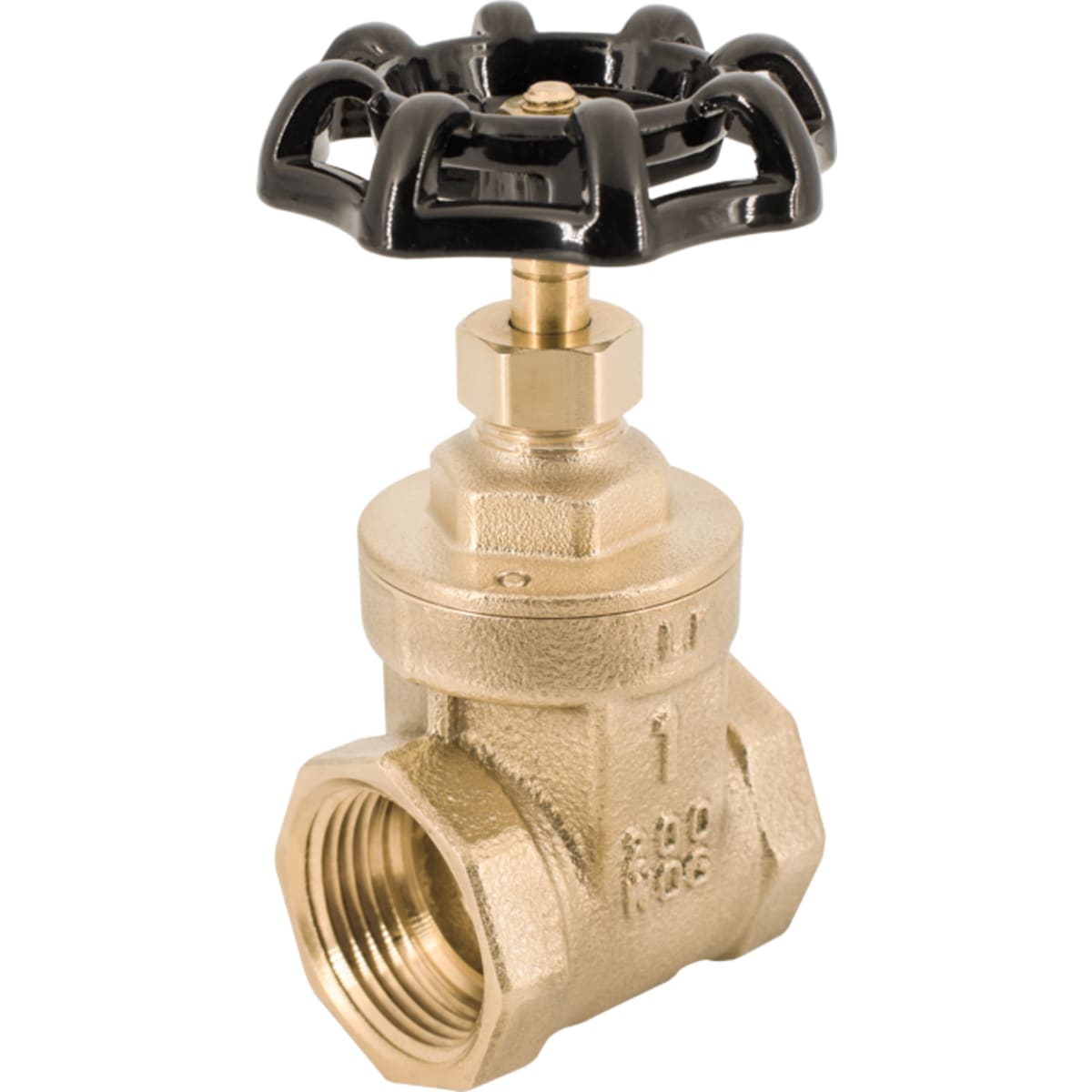

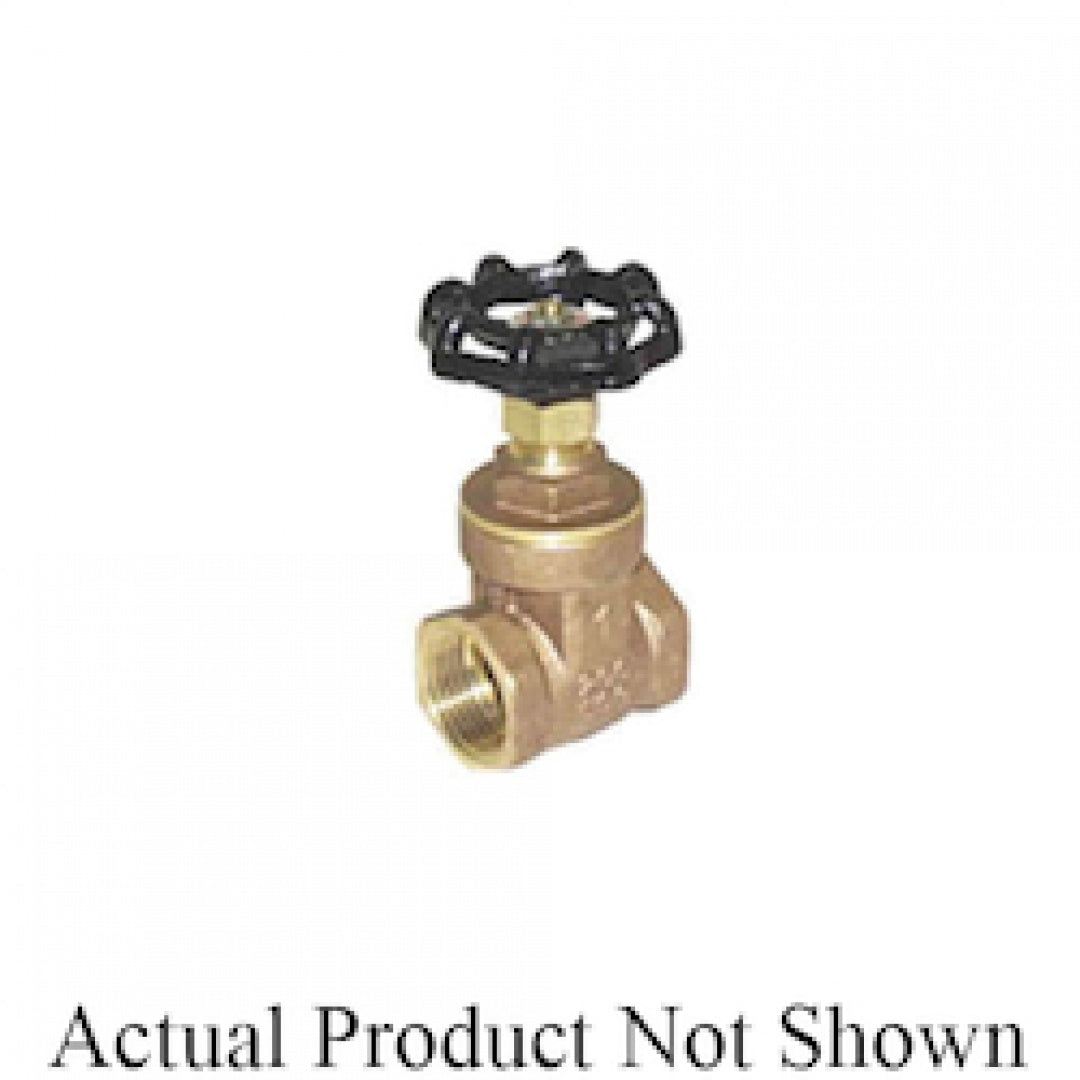

Legend Valve 104-304NL 3/4 - FIP x FIP No Lead Forged Brass Gate Valve

Product Description

The Legend Valve 104-304NL is a three-quarter inch gate valve made from forged brass. It features FIP connections, which are ideal for reliable plumbing installations. This valve is designed for both residential and commercial applications, ensuring durability and long-lasting performance.

• Brass construction enhances durability.
• Lead-free design meets safety standards.
• Designed for potable water applications.

Product Highlights

This valve provides an excellent solution for managing water flow in various plumbing systems.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 104-304NL

Technical Specifications

• Size: 3/4 inches
• Connection Type: FIP
• Pressure Rating: 200 psi CWP
• Temperature Rating: 200 deg F
• Inlet to Outlet Length: 1.85 inches
• Top to Inlet Center: 3.31 inches
• Hand Wheel Diameter: 2.13 inches
• Body Material: Cast Brass
• Trim Material: Forged Brass
• Softgoods Material: NBR Stem Packing
