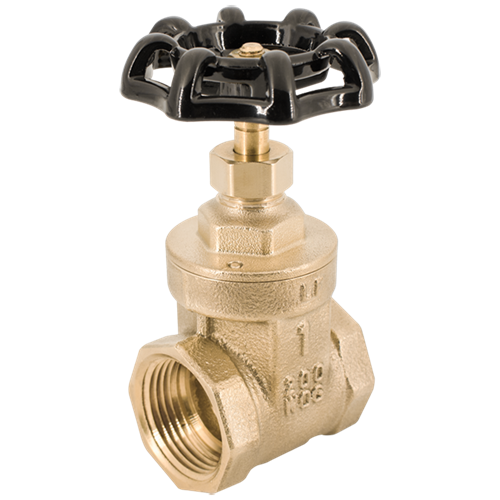

Legend Valve 104-304 T-401 Gate Valve 3/4 inches

Product Description

The LEGEND VALVE 104-304 T-401 Gate Valve is a 3/4 inch nominal valve designed for residential or commercial potable water applications. Featuring an FNPT end style and a cast brass body with brass trim, it is rated for 200 psi CWP pressure and temperatures up to 200 deg F. This handwheel-actuated valve includes NBR stem packing and meets ANSI/ASME B1.20.1/B16.18 and ANSI/NSF 61-8 standards, ensuring reliable performance in water systems.

• Durable, all-brass body construction and heavy cast iron hand wheel.
• Electric-induction furnace casting process optimizes molten brass temperatures, resulting in superior cast body and bonnet components.
• Inserted bonnet with large stem packing and forged packing-nut.

Product Highlights

Cast brass construction, 200 psi CWP rating, and handwheel actuation for potable water systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 104-304
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Series: T-401
• End Style: FNPT
• Manufacturer: LEGEND VALVE
• Nominal Size: 3/4 in
• Actuator Type: Handwheel
• Body Material: Cast Brass
• Trim Material: Brass
• Domestic/Import: Import
• Pressure Rating: 200 psi CWP
• Softgoods Material: NBR Stem Packing
• Temperature Rating: 200 deg F
• Hand Wheel Diameter: 2.13 in
• Top to Inlet Center: 3.31 in
• Inlet to Outlet Length: 1.85 in
• Application: Residential or Commercial Potable Water Applications
• Standards: ANSI/ASME B1.20.1/B16.18, ASTM B16 UNS C36000/B124 UNS C37700/B584 UNS C85700, ISO 9002, Truesdail Labs Certified to ANSI/NSF 61-8
• UPC: 662545001647
• Handle Material: ASTM A48 Class 35 Cast Iron
• Stem Material: ASTM B16 UNS C36000 Brass
• Stem Design: Non-Rising
• Bonnet Material: ASTM B584 UNS C85700 Cast Brass
• Wedge Material: ASTM B124 UNS C37700 Forged Brass
• Finish: No Finish Group
