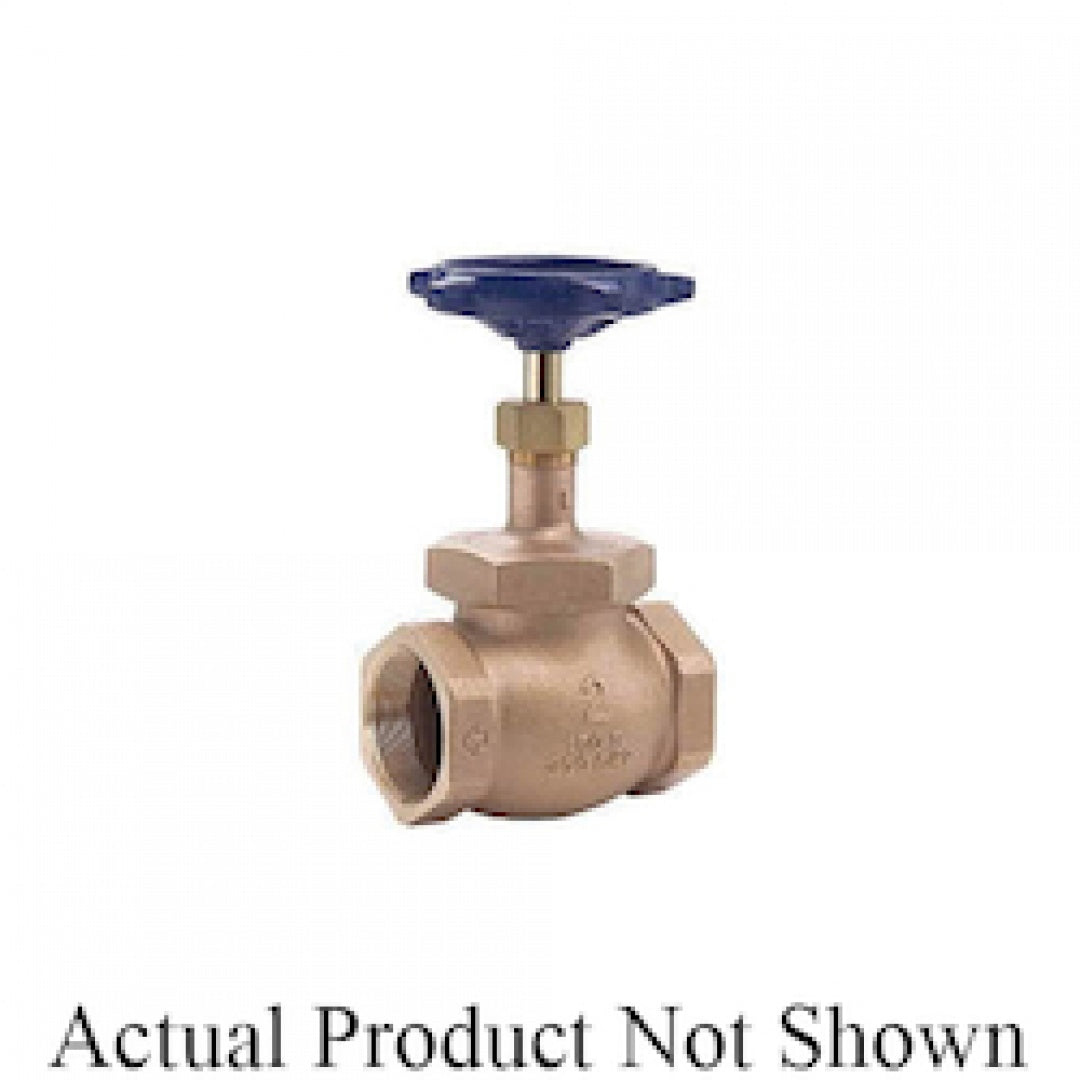

LEGEND VALVE 103-116 1-1/4 T-422 IPS Globe Valve

Product Description

The LEGEND VALVE 103-116 is a durable bronze globe valve designed for simple operation and reliable performance. It features a nominal size of one and one-fourth inches with an FNPT end style. This valve operates smoothly under a pressure rating of three hundred psi, suitable for various applications including gas, oil, and water.

• Pressure rating of 300 psi.
• Flow rate of 22 gpm.
• Suitable for media including gas, oil, and water.

Product Highlights

Reliable handwheel actuator provides easy control. A union bonnet ensures maintenance can be repeated without hassle, and the articulated stem and disc design extends the life of the valve's seating.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• Series: T-422

Technical Specifications

• Nominal Size: 1-1/4 in
• Body Material: Bronze
• Trim Material: DZR Brass
• End Style: FNPT
• Flow Rate: 22 gpm
• Pressure Rating: 300 psi
• Temperature Rating: 0 to 150 deg F
• Hand Wheel Diameter: 3.54 in
• Inlet to Outlet Length: 3.46 in
• Top to Inlet Center: 5.04 in
• Actuator Type: Handwheel
• Softgoods Material: Seat Disc/PTFE Stem Packing
