Legend Valve 103-115 1 inches T-422 Ips Globe Valve

Product Description

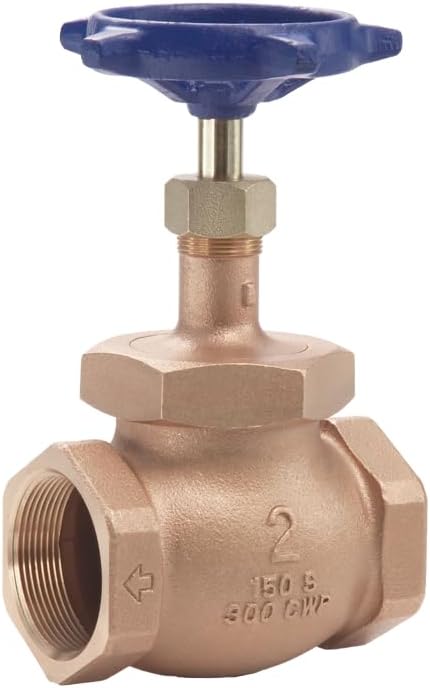

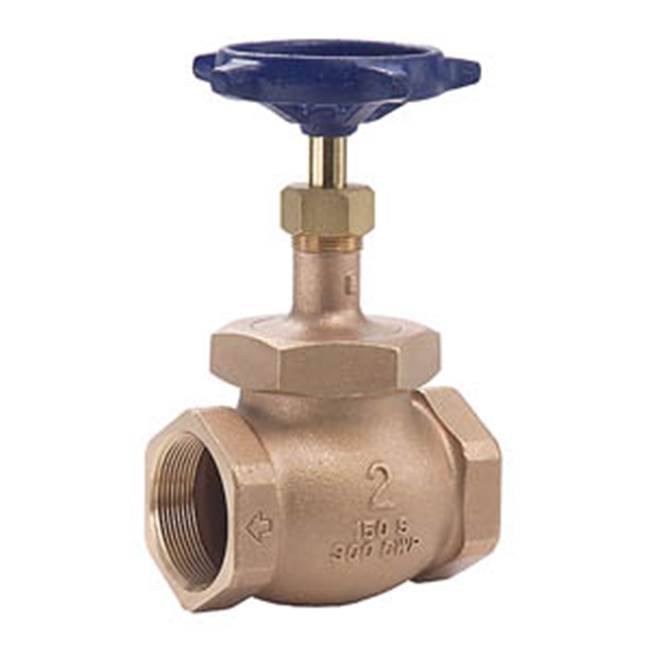

The LEGEND VALVE 103-115 Globe Valve is a T-422 series union bonnet valve designed for fluid control applications. This 1 inch nominal valve features FNPT connections and is rated for 300 psi pressure and temperatures from 0 to 450 deg F. Constructed with a cast bronze body and DZR brass trim, it is suitable for cold water, gas, and oil media, operated by a handwheel actuator.

• Heavy-duty bronze body, bonnet, and union nut construction.
• Union bonnet design facilitates repeat maintenance.
• Renewable PTFE seat disc ensures extended service life.

Product Highlights

Durable cast bronze globe valve with union bonnet and PTFE seat disc, suitable for various media and high-pressure applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 103-115
• Country of Origin: Import

Technical Specifications

• Type: Union Bonnet
• Media: Cold Water/Gas/Oil
• Series: T-422
• Manufacturer: LEGEND VALVE
• Nominal Size: 1 in
• Actuator Type: Handwheel
• Body Material: Cast Bronze
• Trim Material: DZR Brass
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Temperature Rating: 0 to 450 deg F
• Hand Wheel Diameter: 3.15 in
• Top to Inlet Center: 4.57 in
• Inlet to Outlet Length: 3.01 in
• Standards: 150 WSP, 300 CWP
• Connection Type: FNPT x FNPT
• Product Type: Globe Or Angle Valve
• Finish: No Finish Group
• Included Components: Valve
