Product Description

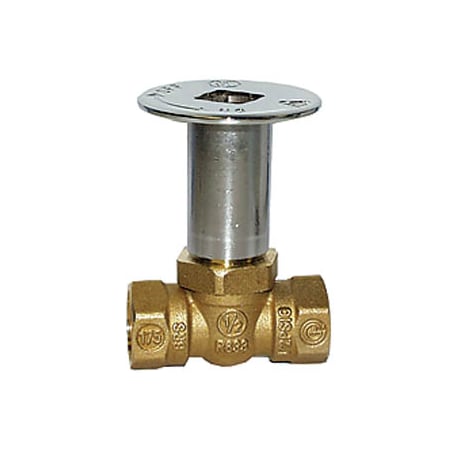

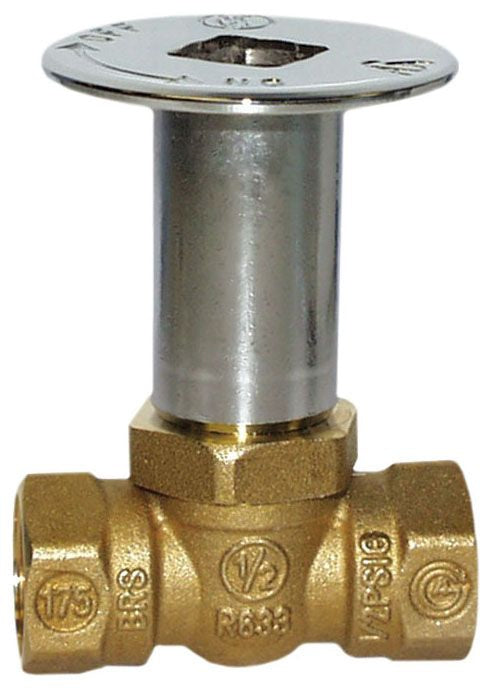

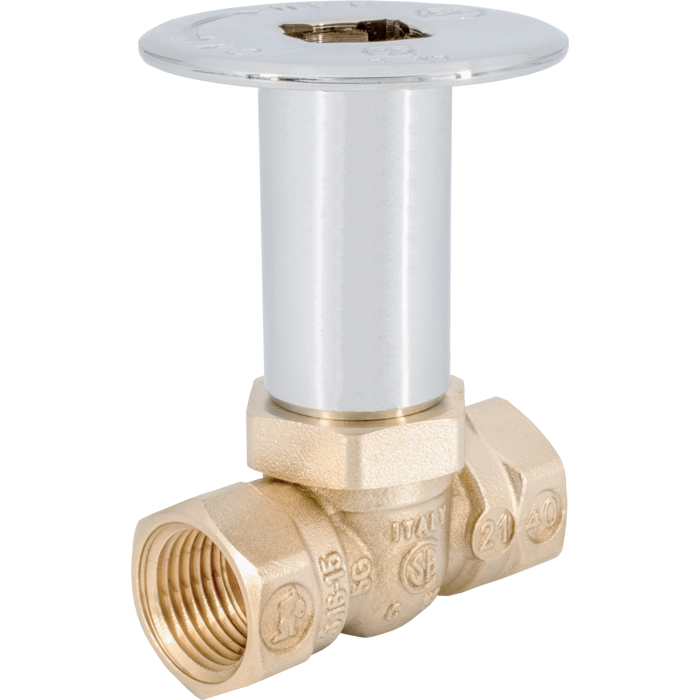

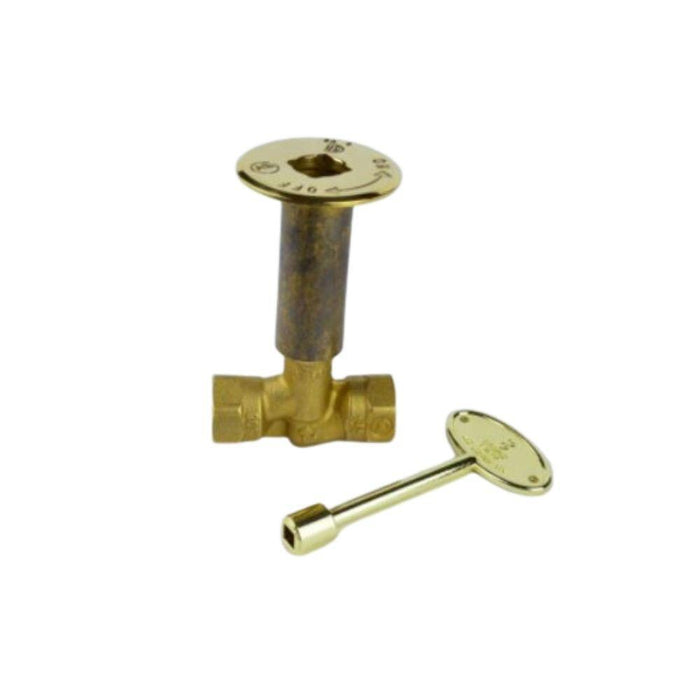

The LEGEND VALVE 102-864 is a T-3500PB series 1/4 turn ball-type log lighter valve. This 1/2 inch nominal valve features FNPT end style and a forged brass body. It is designed for natural fireplace log lighting or continuous-burn artificial gas log sets, offering a positive quarter-turn, bubble-tight shutoff. The valve is certified for use on natural gas or LP gas systems.
- Straight pattern with 1/4 turn ball-type actuation.
- Features a polished brass escutcheon and is CSA Certified.
- Constructed with a forged brass body for durability.
Product Highlights
This log lighter valve kit ensures safe and efficient operation for natural or LP gas systems with its durable design and positive quarter-turn shutoff.
Product Information
Standard Information
-
Brand: LEGEND VALVE
-
Manufacturer Part Number: 102-864
-
Country of Origin: Import
Technical Specifications
-
Manufacturer: LEGEND VALVE
-
Series: T-3500PB
-
Primary Product Type: Valve
-
Type: Turn Ball
-
Actuation Type: 1/4 Turn Ball
-
Nominal Size: 1/2 Inch
-
End Style: FNPT
-
End Connection: Female Threaded x Female Threaded
-
Body Material: ASTM B124 UNS Alloy C37700 Forged Brass
-
Stem Material: ASTM B124 UNS Alloy C37700 Forged Brass
-
Ball Material: Brass
-
Seat Material: Type 7PB496 ASTM D2000 Nitrile Rubber
-
Stem O-Ring Material: Type 7PB496 ASTM D2000 Nitrile Rubber
-
Stem Shield Material: ASTM B124 UNS Alloy C37700 Forged Brass
-
Stem Receiver Key/Stem Extension Material: Commercial Grade Aluminum 1/4 Inch Square
-
Washer Material: Commercial Grade Synthetic Fiber Anti Friction
-
Finish: Polished Brass
-
Body Style: Straight
-
Handle Type: Key Handle
-
Domestic/Import: Import
-
UPC: 662545031804
-
Approvals & Standards: CSA, ANSI/ASME B1.20.1, ANSI Z21.15, ISO 9002
-
BTU Rating: 98000 BTU/Hour
-
End to End Distance: 2.36 Inch
-
Pressure Rating: 125 PSI CWP
-
Escutcheon Length: 1-7/8 Inch
-
Key Length: 4 Inch
-
Temperature Rating: 180 Deg F (Maximum Service)
-
AN Stem Type: Blowout Resistant
-
Application: Natural and LP Gas Only
