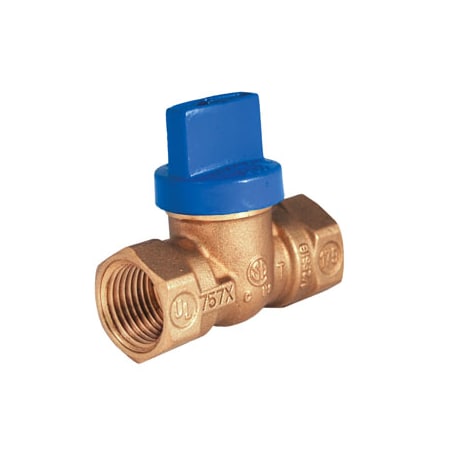

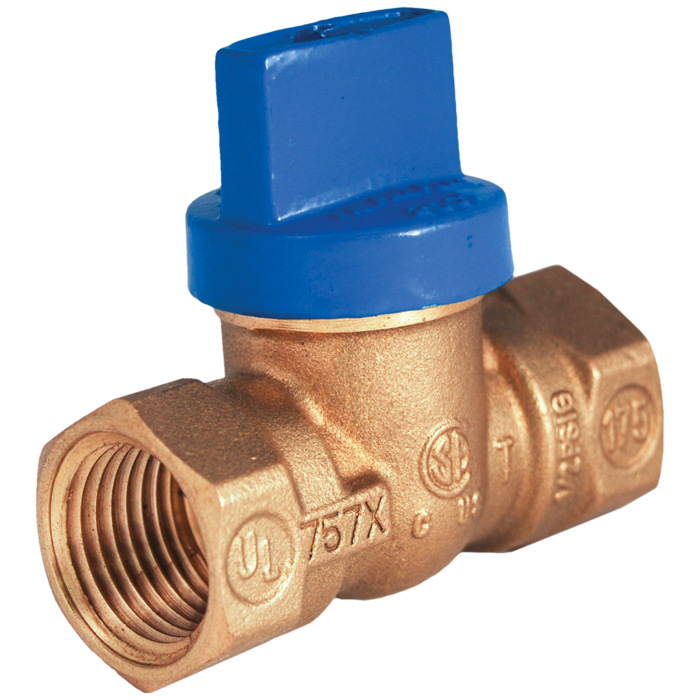

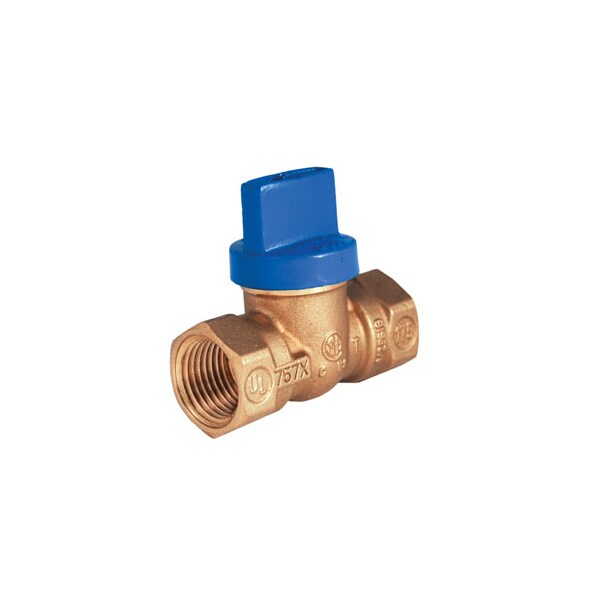

Legend Valve 102-618 T-3001 Gas Ball Valve 2 inches

Product Description

The LEGEND VALVE 102-618 is a Blue Top™ Gas Ball Valve, part of the T-3001 series, designed with a forged brass body and a T-handle actuator. Suitable for residential and commercial gas installations, it handles natural, manufactured, and mixed LP gas/air mixtures. The valve features a polished chrome forged brass ball and a forged brass stem with nitrile rubber seat trim.

• Features a patented 1-piece forged brass body to prevent seam leaks.
• Equipped with a chrome-plated ball and soft seats to resist contamination.
• Compliant with Massachusetts Code for Gas Ball Valves.

Product Highlights

This 2" gas ball valve ensures a reliable seal in gas applications, featuring a quarter-turn design and a 175 psi pressure rating.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 102-618
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 4.32 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 2 in
• Pressure Rating: 175 psi CWP
• Series: T-3001
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
• Manufacturer: Legend
• Size: 2"
• Connection Type: FNPT x FNPT
• Ratings: 175 p.s.i.
• Configuration: FNPT x FNPT
• Type: Ball
• Application: Natural Gas
• Connection: FPT
• Pipe Size: 2 in
• For Media: Gas
• Product Type: Ball Valve
• Brand Name: Legend Valve
• MPN: 102-618
