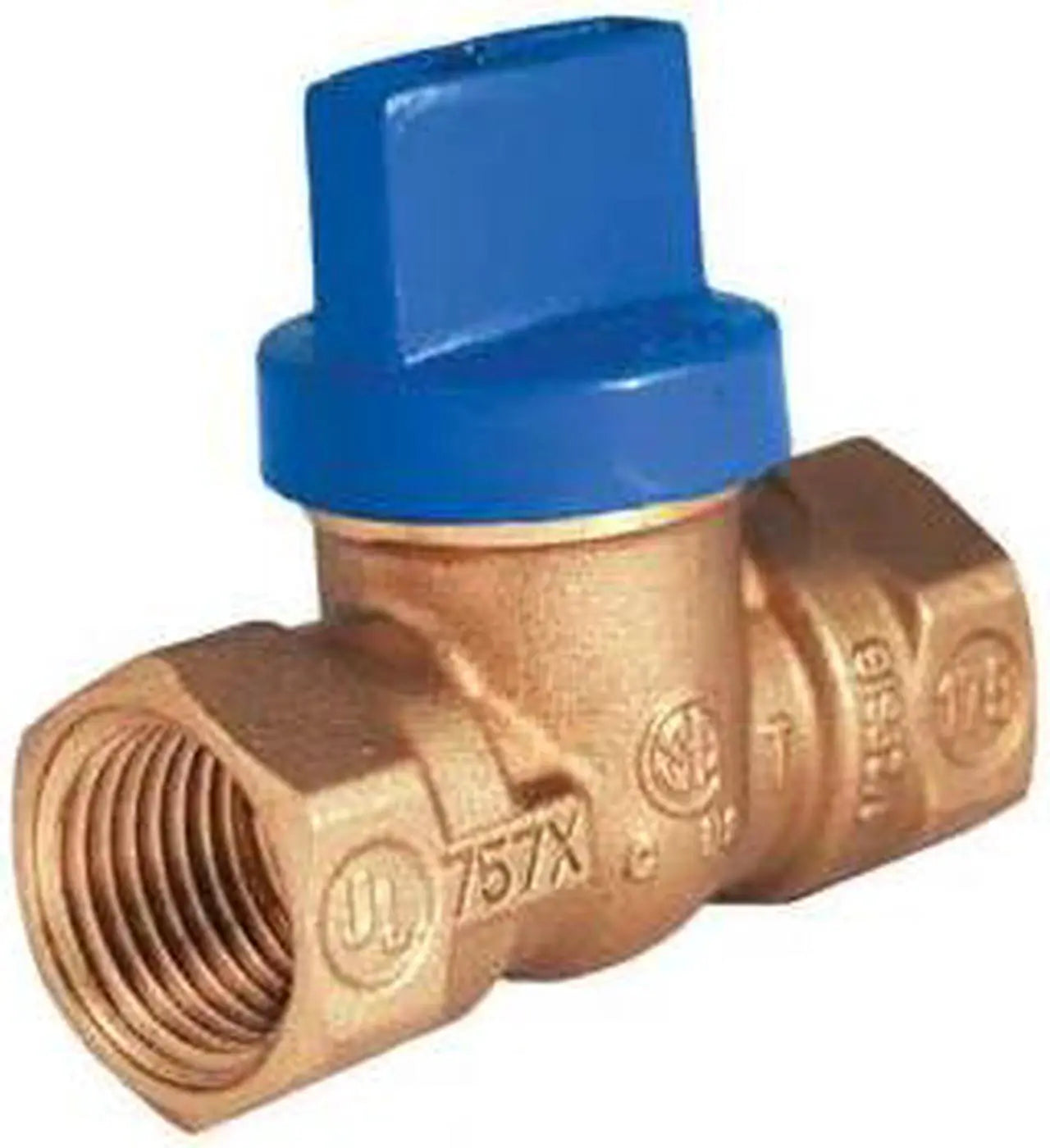

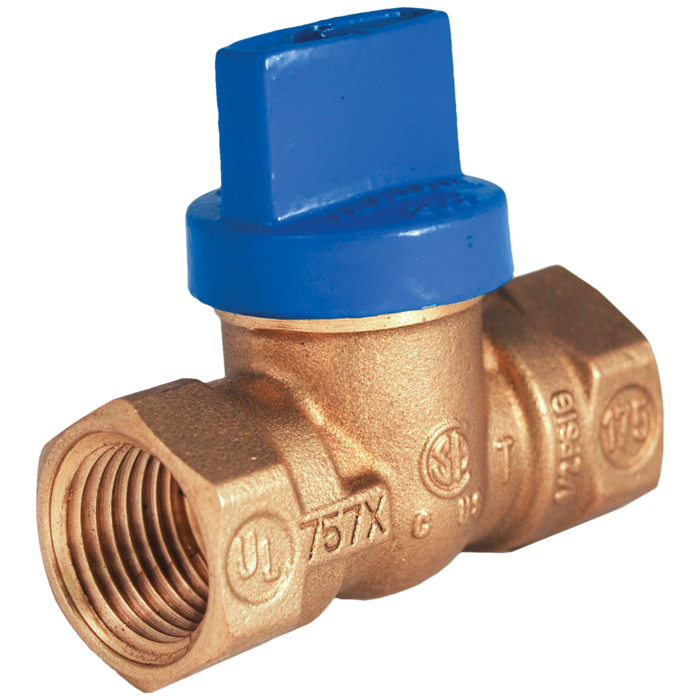

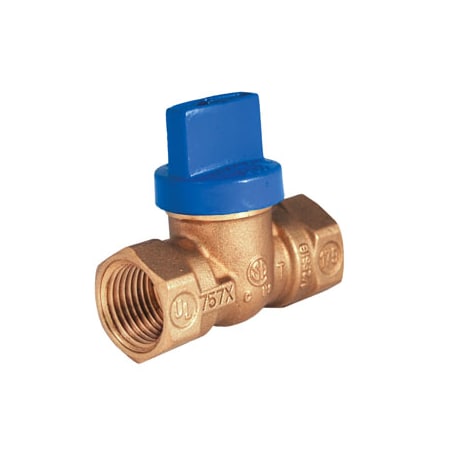

Legend Valve 102-617 T-3001 Gas Ball Valve 1-1/2 inches

Product Description

The LEGEND VALVE 102-617 is a T-3001 gas ball valve with a 1-1/2 inch nominal size and FNPT end style. Features a patented 1-piece forged brass body that eliminates seam leaks. The chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications.

• Patented 1-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs
• Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
• Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks

Product Highlights

This forged brass gas ball valve features a Tee handle and is suitable for residential and commercial gas installations.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 102-617
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 3.68 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1-1/2 in
• Pressure Rating: 175 psi CWP
• Series: T-3001
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
• Manufacturer: Legend Valve
• Standards: 175 PSI
• Connection Type: FNPT x FNPT
• Country of Origin: Taiwan, Province of China
• Brand: LEGEND VALVE
• MPN: 102-617
• ItemPackageQuantity: 1
• Features: 1-1/2" T-3001 Forged Brass Gas Valve, Tee Handle, Mass. Code Gas
• Type: Ball
• Application: Natural Gas
• Connection: FPT
• Pipe Size: 1-1/2 in
• For Media: Gas
