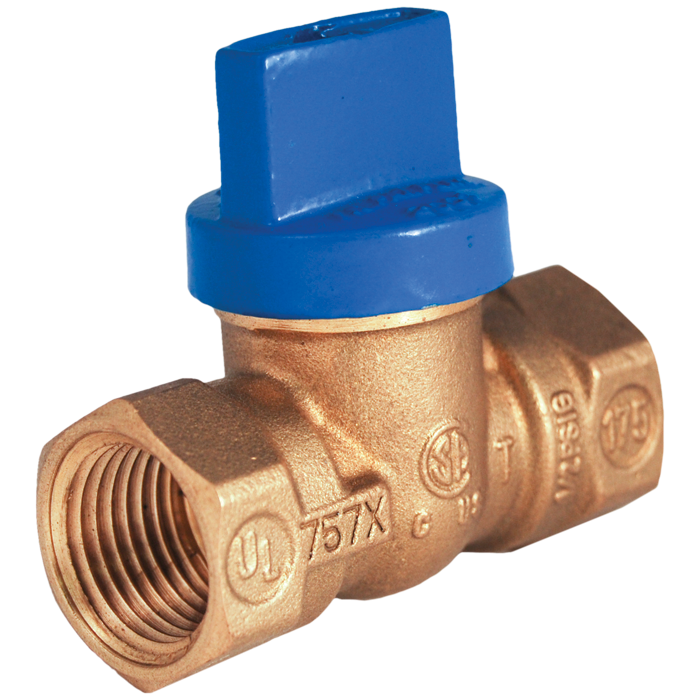

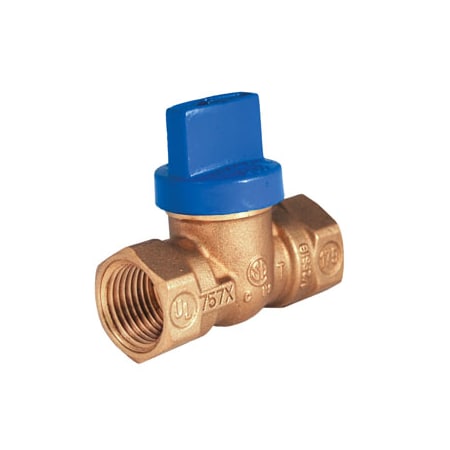

Legend Valve 102-616 T-3001 Gas Ball Valve 1-1/4 inches

Product Description

The LEGEND VALVE 102-616 T-3001 gas ball valve features a patented one-piece forged brass body that eliminates potential seam leaks. Designed for residential and commercial gas installations, it has a polished chrome forged brass ball and soft seats that resist contamination build-up. This valve is not suitable for steam service.

• Patented 1-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs
• Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
• Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks

Product Highlights

The valve features a T-handle actuator, FNPT end style, and is suitable for natural, manufactured, and mixed LP gas/air mixtures.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 102-616
• Country of Origin: Italy

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 3.43 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1-1/4 in
• Pressure Rating: 175 psi CWP
• Series: T-3001
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
• Manufacturer: Legend
• Type: Ball
• Application: Natural Gas
• Connection: FPT
• Size: 1-1/4"
• Width: 3.650
• Length: 6.350
• MPN: 102-616
• Brand: LEGEND VALVE
• UPC: 0662545001012
• Country of Origin: Italy
• Pipe Size: 1-1/4 in
• For Media: Gas
• Connection Type: FNPT x FNPT
• Standards: 175 PSI
• Configuration: FNPT x FNPT
• Ratings: 175 p.s.i.
