Legend Valve 102-615 T-3001 Gas Ball Valve 1 in

Product Description

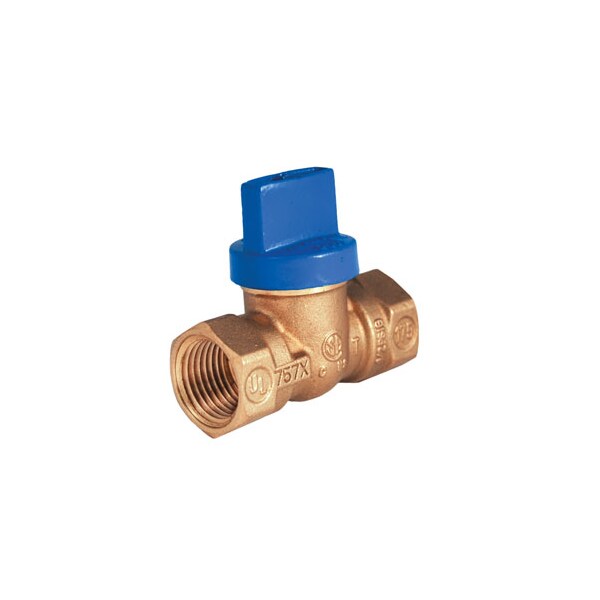

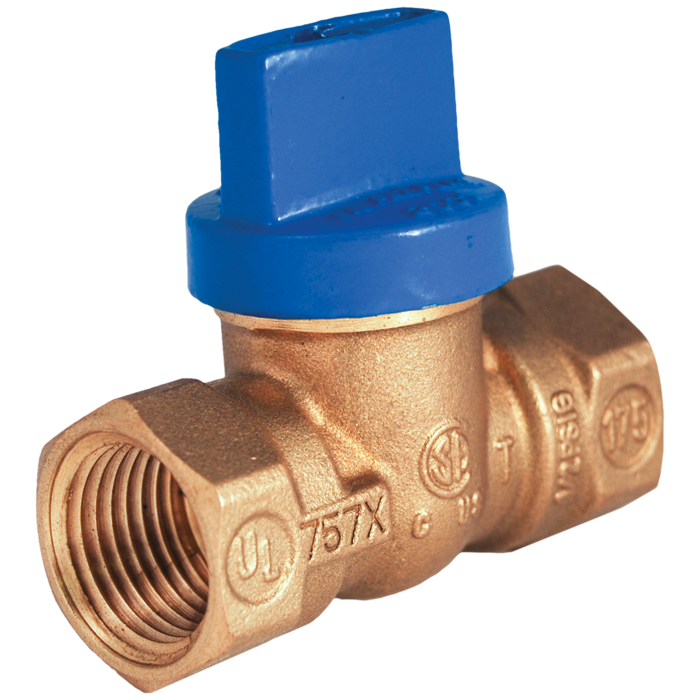

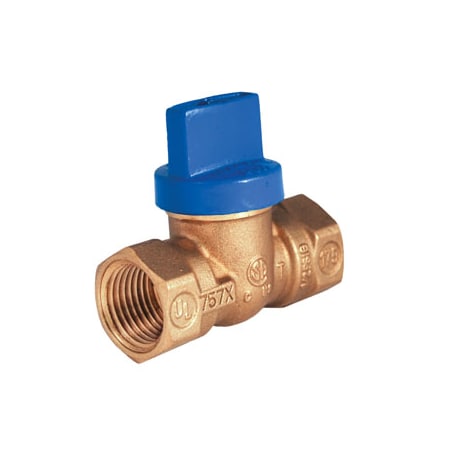

The LEGEND VALVE 102-615 T-3001 Gas Ball Valve is a 1 inch nominal size valve with FNPT end style. Designed for natural, manufactured, and mixed LP gas and air mixtures, it features a T-handle actuator and a polished chrome forged brass ball. It is suitable for residential and commercial gas installations.

• Patented 1-piece forged brass body eliminates seam leaks.
• Chrome plated ball and soft seats resist contamination build-up.
• Quarter-turn, ball-type, forged brass design is more compact.

Product Highlights

This forged brass gas ball valve features a Tee handle, a quarter-turn design, and a 175 psi pressure rating, making it suitable for high-pressure air tests.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 102-615
• Country of Origin: Italy

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 3.06 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1 in
• Pressure Rating: 175 psi CWP
• Series: T-3001
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
• Manufacturer: LEGEND VALVE
• Standards: 175 PSI
• Connection Type: FNPT x FNPT
• Country of Origin: Italy
• MPN: 102-615
• UPC: 662545001005
• Pipe Size: 1 in
• For Media: Gas
• Product Type: Ball Valve
• Configuration: FNPT x FNPT
• Housing Material: Brass
