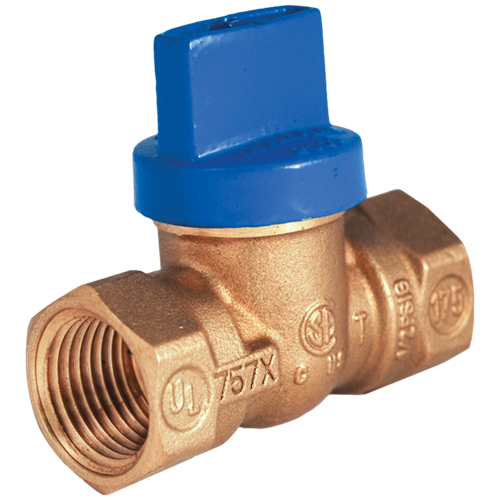

LEGEND VALVE 102-614 3/4 T-3001 GAS BALL VALVE

Product Description

The LEGEND VALVE 102-614 is a three-fourth inch T-3001 gas ball valve. This valve is designed for use with natural gas, manufactured gas, mixed LP gas, and air mixtures. It features a T-handle actuator for ease of use and a polished chrome forged brass ball for durability. The valve is suitable for residential and commercial gas installations.

• Patented one-piece forged brass body reduces seam leaks.
• Chrome plated ball ensures a strong seal in low or moderate pressure.
• Quarter-turn design allows for quick and efficient operation.

Product Highlights

This gas ball valve has a pressure rating of one hundred seventy-five psi, making it capable of withstanding high-pressure tests without any blow-outs. It is not suitable for steam service and comes with a five-year warranty.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• UPC: 662545000992

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Dimensions: 2.55 inches height
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 2.58 inches
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 3/4 inches
• Pressure Rating: 175 psi CWP
• Series: T-3001
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
