Legend Valve 102-612 3/8 inches T-3001 Gas Ball Valve

Product Description

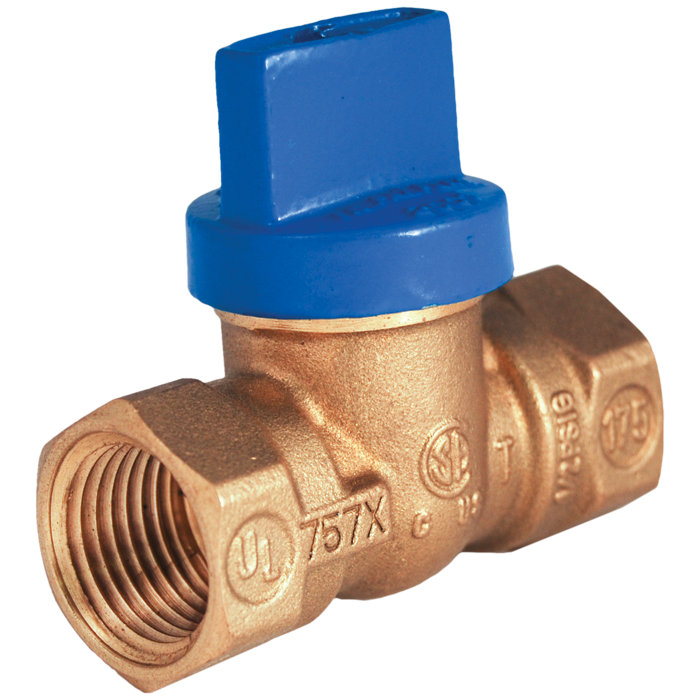

The LEGEND VALVE 102-612 is a Blue Top™ Gas Ball Valve, Series T-3001, with a 3/8 in nominal FNPT end style and 175 psi CWP pressure. Suitable for natural, manufactured, and mixed LP gas/air mixtures, it features a T-Handle actuator and a polished chrome forged brass ball. Designed with a forged brass body and nitrile rubber seat trim.

• Patented 1-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs
• Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
• Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks

Product Highlights

This gas ball valve is ideal for residential and commercial gas installations. cCSAus Certified, Massachusetts Commonwealth Approved, and UL 757X approved.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 102-612
• Country of Origin: Import

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.02 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 3/8 in
• Pressure Rating: 175 psi CWP
• Series: T-3001
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
• Manufacturer: LEGEND VALVE
• Size: 3/8"
• Configuration: FNPT x FNPT
• Product Type: Ball Valve
• MPN: 102-612
• UPC: 0662545006055
