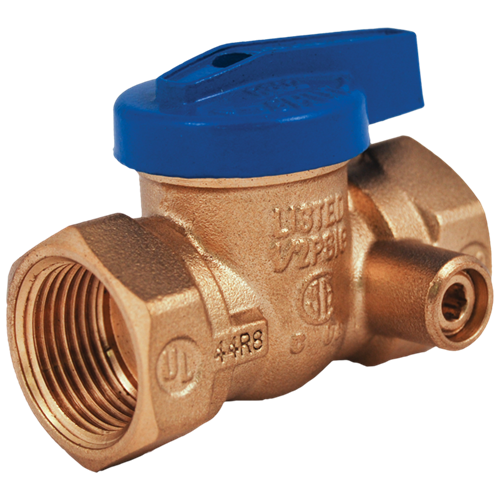

Legend Valve 102-514 3/4 T-3100 Gas Ball Valve

Product Description

Legend Valve 102-514 is a 3/4 inch T-3100 gas ball valve designed for various gas applications. This ball valve provides reliable flow control for residential and commercial gas installations. Its forged brass body ensures durability and a high standard of operation, with an impressive pressure rating of 175 psi.

• Patented 1-piece forged brass body eliminates seam leaks.
• Chrome plated ball and soft seats resist contamination build-up.
• Quarter-turn design allows for easy and quick operation.

Product Highlights

This gas ball valve features a compact design and is recommended for low to moderate pressure gas systems. It is not suitable for steam service, making it ideal for proper gas installations in homes and businesses.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UOM: Each

Technical Specifications

• Series: T-3100
• Nominal Size: 3/4 inch FNPT
• Pressure Rating: 175 psi CWP
• Dimensions: 2.68 inches inlet to outlet, 2.13 inches height
• Body Material: Forged Brass
• Ball Material: Polished Chrome Forged Brass
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
• End Style: FNPT
• Applications: Residential and Commercial Gas Installations
