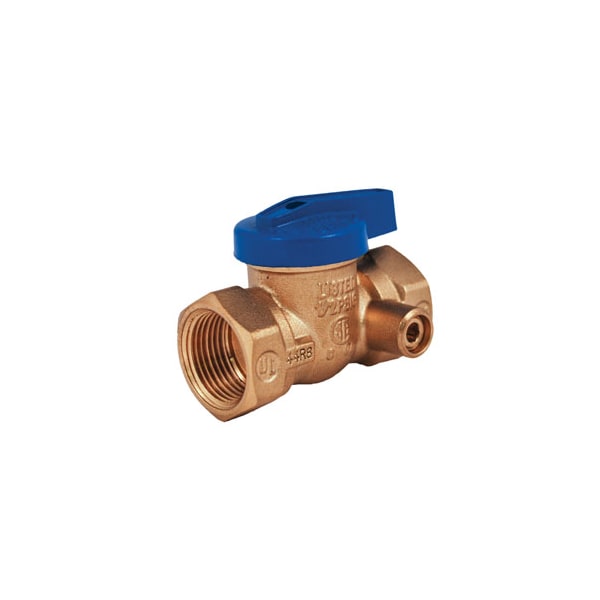

Legend Valve 102-513 1/2 T- 3100 Gas Ball Valve

Product Description

The Legend Valve 102-513 is a 1/2 inch T-3100 gas ball valve designed for reliable performance in gas installations. This ball valve features a 1-piece forged brass body, reducing the chance of leaks associated with two-piece designs. The valve operates with a 175 psi pressure rating, making it suitable for high-pressure applications.

• 1/2 inch FNPT connections for easy installation.
• Chrome plated ball offers enhanced sealing and resistance to contamination.
• Includes a side tap for convenient testing or additional connections.

Product Highlights

Ideal for both residential and commercial gas systems, this valve ensures maximum safety and efficiency.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Model Number: 102-513

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Nominal Size: 1/2 inch
• Orifice Size: 0.4 inch
• Pressure Rating: 175 psi CWP
• Inlet to Outlet Length: 2.43 inches
• Trim Material: Forged Brass Stem
• Type: 1-Piece
