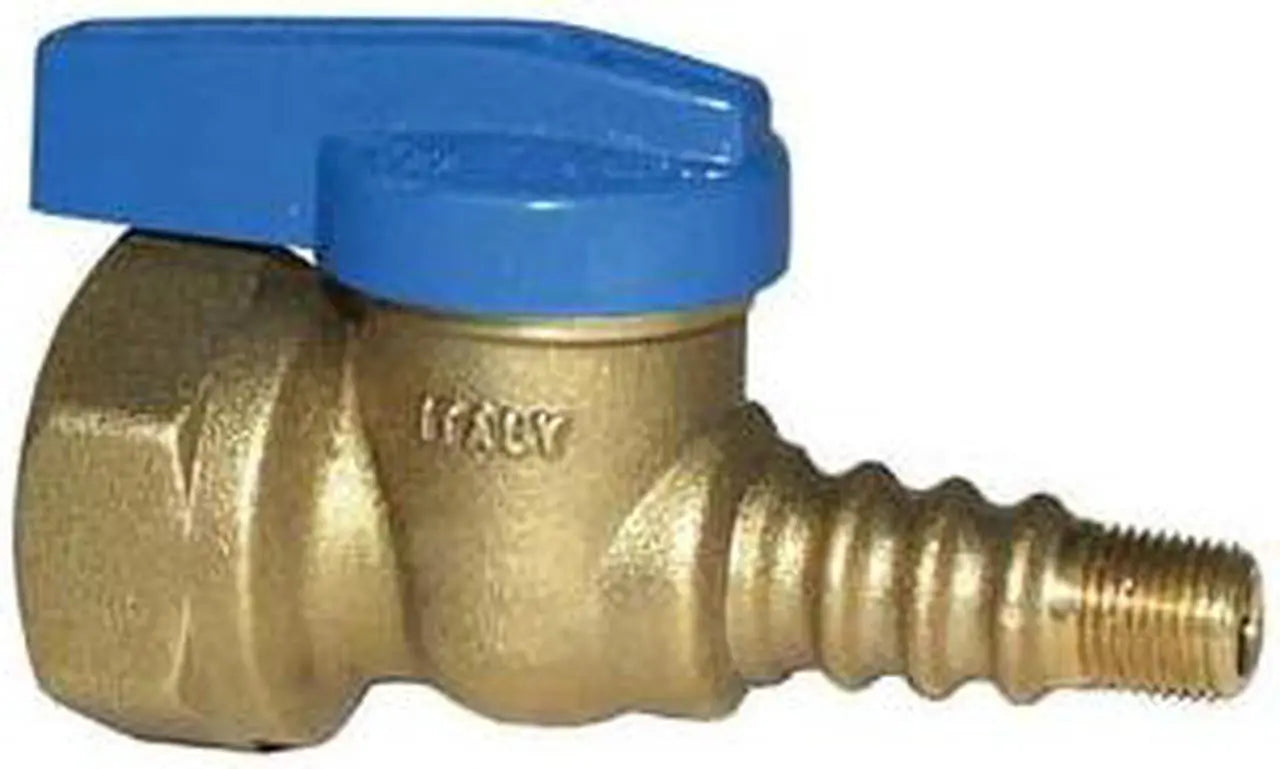

Legend Valve 102-413 1/2 inches x 1/8 inches Texas Pat. T-3000

Product Description

The LEGEND VALVE 102-413 is a Blue Top™ Gas Ball Valve, Texas Pattern, Series T-3000. This valve features a forged brass body, polished chrome forged brass ball, and forged brass stem with nitrile rubber seat trim. Suitable for residential and commercial gas installations using natural, manufactured, mixed LP gas, and air mixtures. The valve has a pressure rating of 175 psi CWP.

• Patented 1-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs
• Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
• Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks

Product Highlights

Gas ball valve with forged brass body and chrome plated ball, suitable for residential and commercial gas applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 102-413
• Country of Origin: Italy

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• End Style: FNPT x TX Pattern
• Inlet to Outlet Length: 2.93 in
• Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures
• Nominal Size: 1/2 x 1/8 in
• Pressure Rating: 175 psi CWP
• Series: T-3000
• Trim Material: Forged Brass Stem and Nitrile Rubber Seat
• Type: Texas Pattern
• Country of Origin: Italy
• Pipe Size: 1/2 in x 1/8 in
• For Media: Gas
• Connection Type: FNPT x Texas
• Standards: 175 p.s.i.
• Brand: LEGEND VALVE
• Manufacturer: Legend
• Application: Natural Gas
• Connection: FPT x Texas
