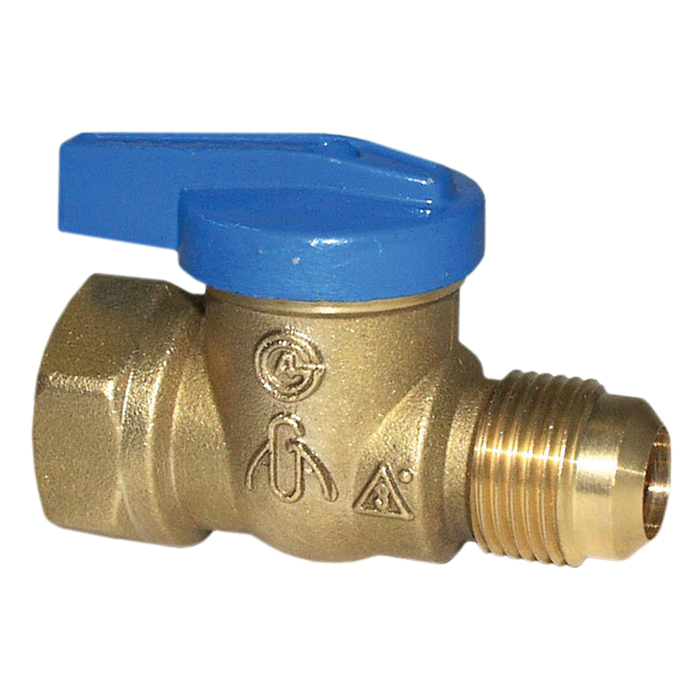

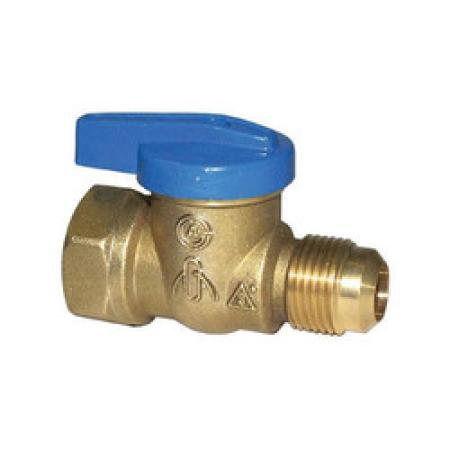

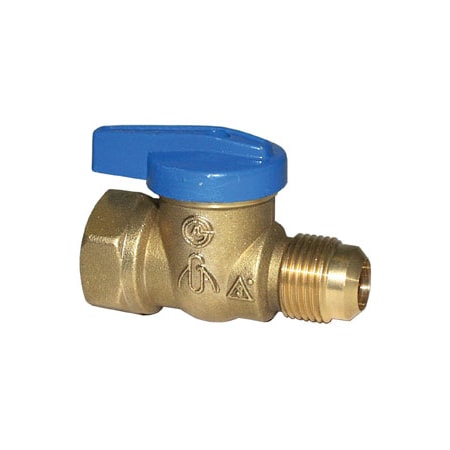

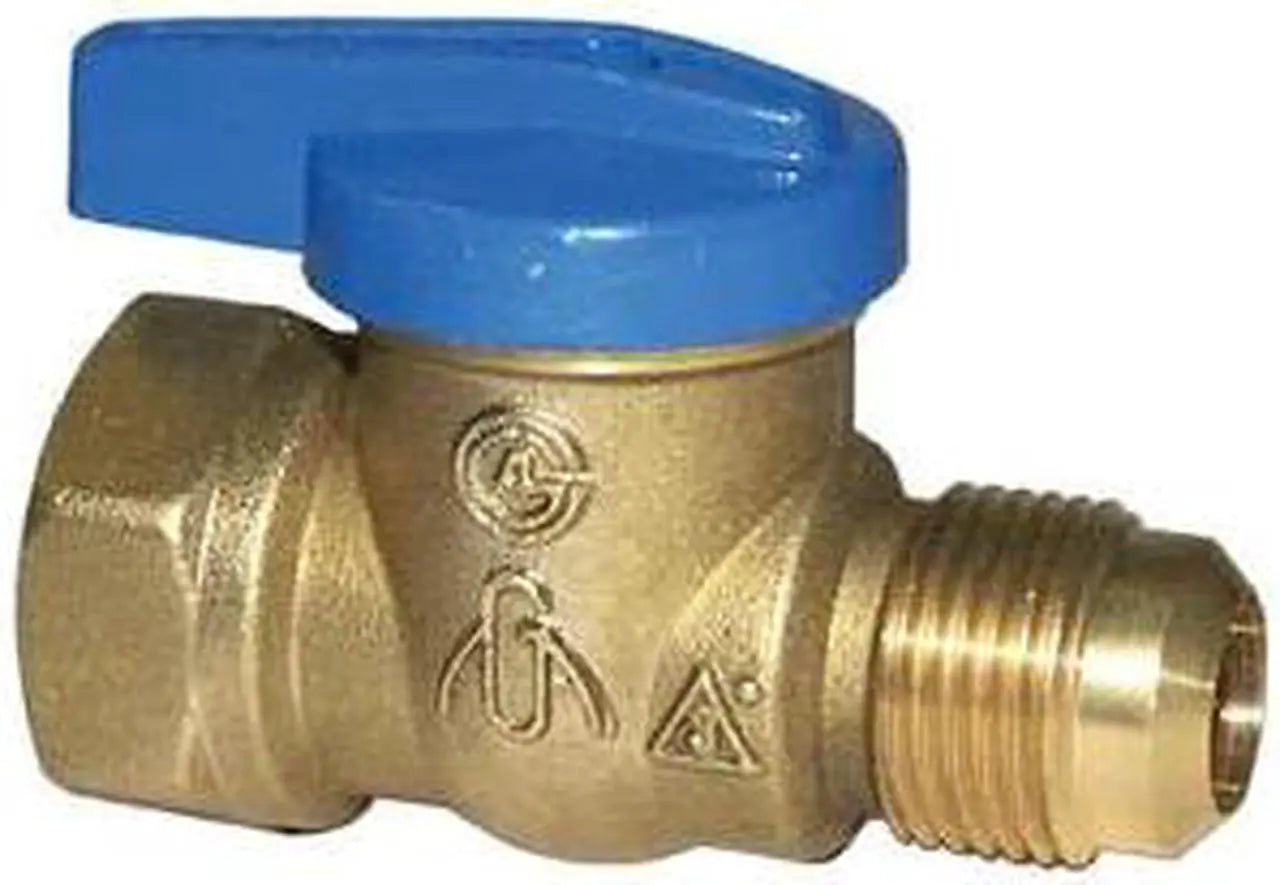

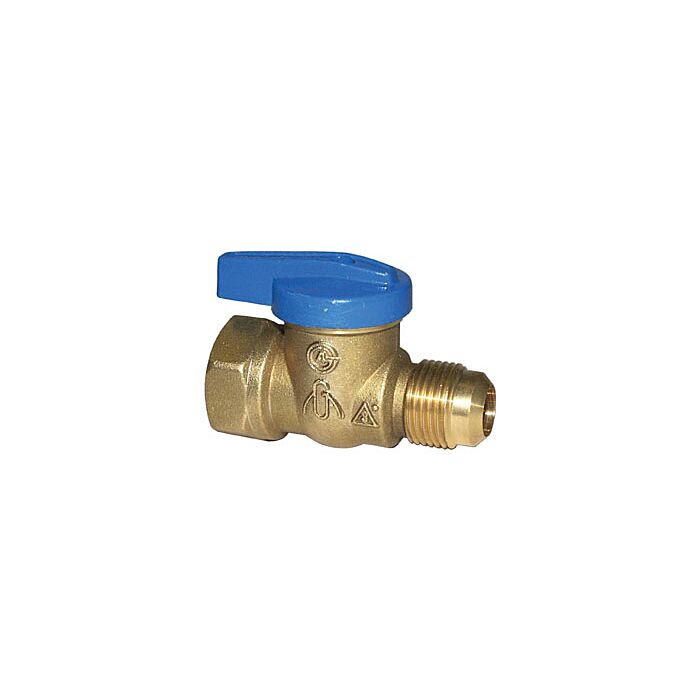

Legend Valve 102-115 T-3000 Gas Ball Valve (5/8 Flare x 3/4 FNPT)

Product Description

Legend Valve 102-115 is a T-3000 series forged brass quarter-turn gas ball valve configured with a 5/8" (15/16-16) flare inlet and 3/4" FNPT outlet. The one-piece forged brass body and chrome-plated ball with nitrile seats provide a positive seal for natural, manufactured and mixed LP gas/air applications. The valve is rated to 175 psi CWP, has a 2.82 in inlet-to-outlet length and a unit weight of approximately 0.59 lb.

• One-piece forged brass body and chrome-plated forged brass ball with nitrile (ASTM D2000 Type 7PB496) seats
• Connections: 5/8" (15/16-16) flare inlet x 3/4" FNPT outlet; quarter-turn (1/4 turn) actuation; inlet-to-outlet length 2.82 in
• Pressure rating 175 psi CWP; designed for natural, manufactured and mixed LP gas/air mixtures; not suitable for steam service

Product Highlights

T-3000 forged brass, 5/8" flare to 3/4" FNPT, 175 psi CWP, one-piece quarter-turn ball valve for residential and commercial gas installations

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 102-115
• Country of Origin: Import

Technical Specifications

• Manufacturer: Legend Valve
• MPN: 102-115
• Brand: Legend Valve
• Series/Model: T-3000
• Nominal Size: 5/8 (15/16-16) x 3/4 in
• Connection Type: Flare x FNPT
• Inlet Connection: 5/8" (15/16-16) flare
• Outlet Connection: 3/4" FNPT (female NPT)
• Body Material: Forged brass (ASTM B124 UNS C37700)
• Ball Material: Chrome plated forged brass (ASTM B124 UNS C37700)
• Seat Material: Nitrile rubber (Type 7PB496 ASTM D2000)
• Stem Material: Forged brass (ASTM B124 UNS C37700)
• Design: One-piece, quarter-turn, ball-type
• Actuation Type: 1/4 turn
• Pressure Rating: 175 psi CWP
• Inlet-to-Outlet Length: 2.82 in
• Overall Height: 2.14 in
• Item Weight: 0.59 lb
• Capacity: 237,346 BTU
• Handle Material: Commercial grade die-cast coated aluminum
• Media: Natural gas, manufactured gas, mixed LP gas/air mixtures
• Not Suitable For: Steam service
• Certifications/Standards: UL 125/842/1477, UL 757X, ANSI/ASME B1.20.1, ASME B16.44, ANSI Z21.15, CSA, cCSAus, ASTM B124 UNS C37700
• UPC: 662545000893
• Country of Origin: Import
• End-to-End Distance: 2.82 in
