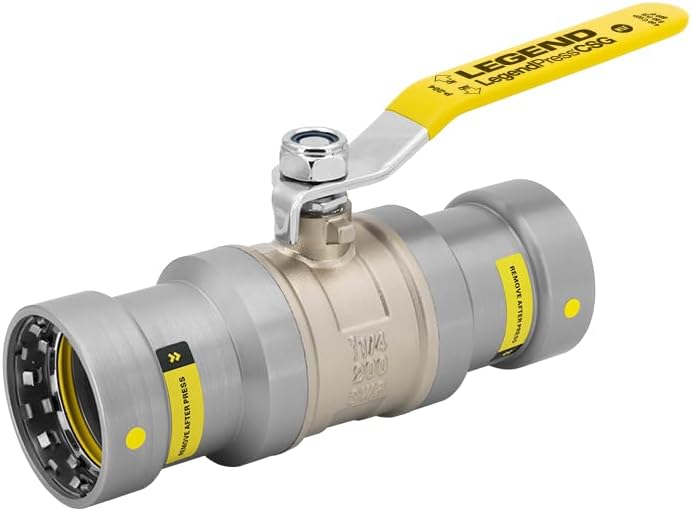

Legend Valve 101-716P LegendPress® CSG P-204G Series Ball Valve, 1-1/4 Inch Press x Press, Full Port

Product Description

The LEGEND VALVE 101-716P P-204G series is a full port ball valve designed for use with fuel, gas, oil, and compressed air. Its carbon steel connectors press into place, streamlining installation. The yellow o-rings are made of HNBR, offering heat and chemical resilience, low gas permeability and minimal compression set. The body and end adapters are plated with zinc-nickel alloy for corrosion protection.

• Press-to-connect end connections reduce labor costs and increase production
• Approval for fuel gas and compressed air applications
• Designed for installation onto ASTM A53 SCH 10 to SCH 40 carbon steel pipe

Product Highlights

Full port ball valve with press-to-connect end connections for fuel, gas, oil and compressed air applications. Features carbon steel body and HNBR O-rings.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-716P

Technical Specifications

• Series: P-204G Series
• Nominal Size: 1-1/4 Inch
• End Style: Press x Press
• Pressure Rating: 200 psi Air, 125 psi Gas
• Port Type: Full
• Media: Compressed Air, Fuel, Gas and Oil
• Body Material: Carbon Steel
• Ball Material: 304 Stainless Steel
• Softgoods Material: HNBR O-ring
• Actuator Type: Lever Handle
• Temperature Rating: -40 to 180 deg F
