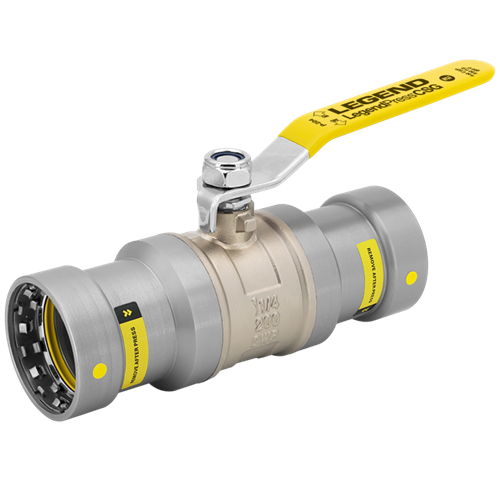

Legend Valve 101-714P P-204 Legendpresscsg Carbon Steel Ball Valve 3/4 Inch

Product Description

The Legend Valve 101-714P is a P-204G series full port ball valve. It works with fuel, gas, oil, and compressed air. The carbon steel connectors allow for easy installation without tools.

• Press-to-connect end connections save time and reduce labor costs
• Approved for use with fuel gas and compressed air
• Compatible with ASTM A53 SCH 10 to SCH 40 carbon steel pipe

Product Highlights

This valve is designed for reliable performance in various applications.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 101-714P

Technical Specifications

• Ratings: 125 PSI Max for Fuel Gas, 200 PSI Max for Air
• Operating Temp Range: -40F to 180F
• Size: 3/4 Inch
• Configuration: Press x Press
• Series: P-204G Series
• End Style: Press x Press
• Pressure Rating: 200 psi Air, 125 psi Gas
• Port Type: Full
• Media: Compressed Air, Fuel, Gas, and Oil
• Body Material: Carbon Steel
• Ball Material: 304 Stainless Steel
• Softgoods Material: HNBR O-ring
• Actuator Type: Lever Handle
• Temperature Rating: -40 to 180 deg F
