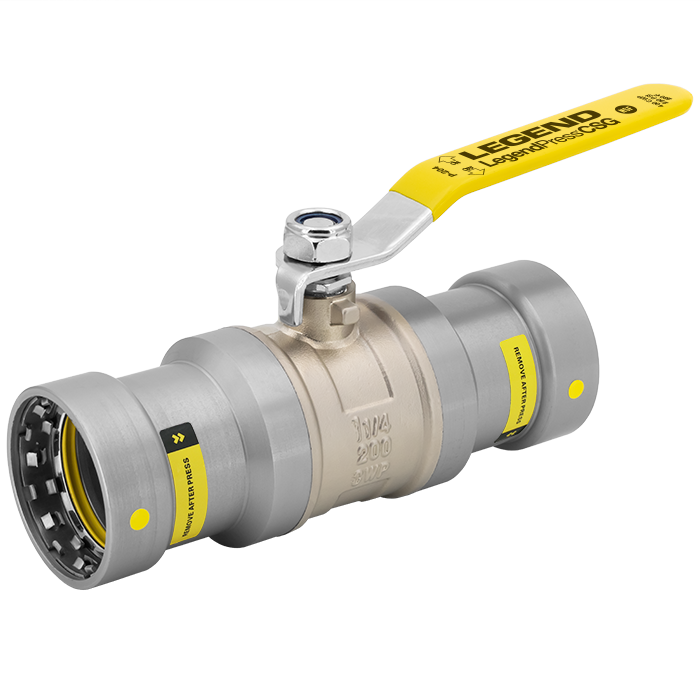

LEGEND VALVE 101-713P P-204 Legendpresscsg Carbon Steel Ball Valve

Product Description

The LEGEND VALVE 101-713P is a full port ball valve that works well with fuel, gas, oil, and compressed air. It features carbon steel connectors that simplify the installation process. The yellow HNBR o-rings provide resistance to heat and chemicals while maintaining low gas permeability and a minimal compression set. The valve's body and end adapters are plated with a zinc-nickel alloy for added corrosion protection.

• Full port ball valve design
• Compatible with fuel, gas, oil, and compressed air
• Carbon steel connectors for easy installation

Product Highlights

This ball valve allows for easy connection and robust performance in various applications.

Product Information

Standard Information

• Size: 1/2 Inch
• Configuration: Press x Press

Technical Specifications

• Max Pressure Rating: 125 PSI for fuel gas, 200 PSI for air
• Operating Temperature Range: -40F to 180F
• Series: P-204G Series
• Port Type: Full
• Media Compatibility: Compressed air, fuel, gas, and oil
• Body Material: Carbon steel
• Ball Material: 304 stainless steel
• Softgoods Material: HNBR O-ring
• Actuator Type: Lever handle
• Temperature Rating: -40 to 180 degrees F
