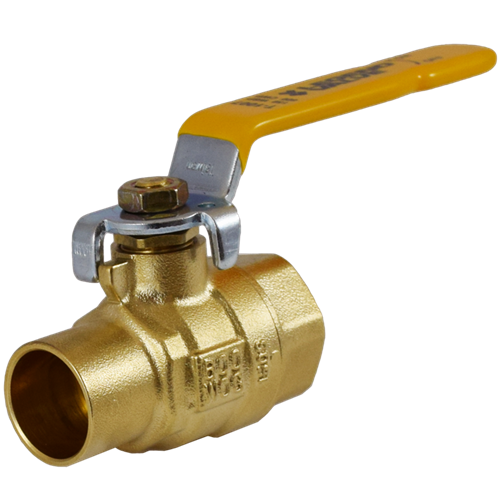

Legend Valve 101-624 3/4 T-1007 IPS X C Ball Valve

Product Description

The Legend Valve 101-624 is a 3/4 inch ball valve designed for plumbing applications. This valve features FNPT x C connections and operates at a maximum pressure of six hundred psi. It is made from polished chrome brass and has a forged brass body.

• Full port design for maximum flow
• Durable PTFE seat trim for optimal sealing
• Five year warranty for peace of mind

Product Highlights

This versatile ball valve is ideal for connecting boilers to copper tubing. It can handle steam pressure up to one hundred fifty psi.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Series: T-1007

Technical Specifications

• Ball Material: Polished Chrome Brass
• Body Material: Forged Brass
• End Style: FNPT x C
• Nominal Size: 3/4 in
• Inlet to Outlet Length: 2.56 in
• Top to Inlet Center: 1.87 in
• Pressure Rating: 600 psi CWP
• Trim Material: Polished Chrome Brass Stem and PTFE Seat
