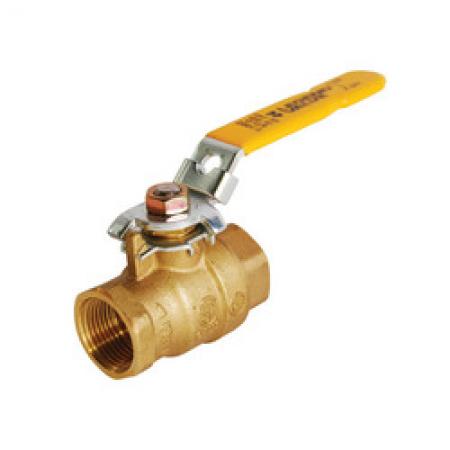

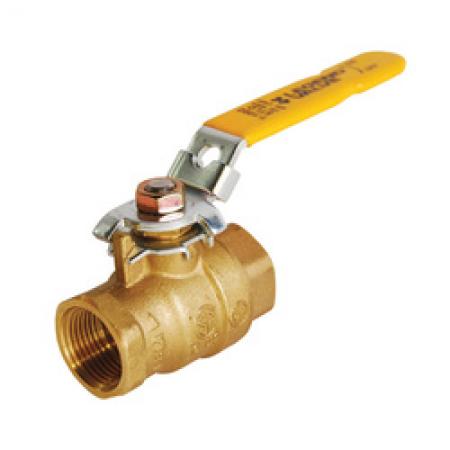

LEGEND VALVE 101-614 3/4 T-1002LD Ball Valve

Product Description

LEGEND VALVE 101-614 is a 3/4 inch ball valve known for its durable construction and precise control. This valve is part of the T-1002LD series and is designed to handle media such as oil, steam, and water.

• Nominal size of 3/4 inches with FNPT end style.
• Pressure rating of 600 psi and a temperature rating of 250 degrees Fahrenheit.
• Flow rate of 26 gallons per minute with full port design.

Product Highlights

This ball valve features a latch-lock handle actuator for secure operation and is crafted from forged brass for long-lasting performance.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• Series: T-1002LD

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Brass
• Body Material: Brass
• Finish: Polished Chrome
• Flow Rate: 26 gpm
• Inlet to Outlet Length: 2.52 inches
• Media: Oil, Steam, Water
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 1.97 inches
• Trim Material: Brass Stem and PTFE Seat
