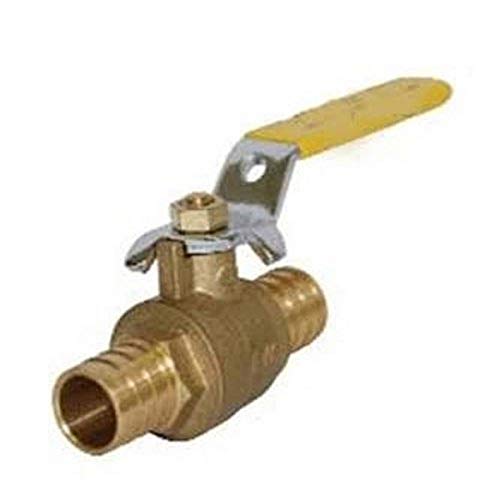

Legend Valve 101-594NL T-2006NL DZR Forged Brass Ball Valve 3/4 in PEX

Product Description

The Legend Valve 101-594NL is a T-2006NL DZR forged brass ball valve with a 3/4 inch PEX connection. It features a lead-free design suitable for potable water installations, complying with national lead-free plumbing laws. The valve's durable construction is ideal for confined tubing installations.

• Lead-free design suitable for all no-lead potable water installations.
• Durable, DZR forged brass construction is smaller and stronger than cast versions.
• Maintenance-free dual o-ring, blow-out-proof stem design eliminates the need for periodic nut tightening.

Product Highlights

This Legend Valve ball valve ensures a positive shut-off and long service life with its PTFE seats and self-cleaning chrome-plated ball.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-594NL

Technical Specifications

• Item Name: Ball Valve
• Type: Full-Port
• Series/Model: Model T-2006NL
• Nominal Size: 3/4 IN
• Connection Type: PEX Insert
• Pressure Rating: 400 PSI (CWP)
• Body Material: Forged Brass
• Handle Material: Steel
• Stem Material: Forged Brass
• Seat Material: PTFE
• Material Standard: Body: ASTM F1806
• Material Specification: Body, Ball And Stem: UNS C46500
• Finish/Color: Zinc Plated Handle
• Industry Standards: ANSI/NSF 61-G And ANSI/NSF 14, UPC/IAPMO Certified
• Width: 2.62 IN
• Lead Free: Yes
• Other Physical Dimension: 1.57 IN Inlet Center To Top Of Handle, 3.17 IN Handle Length
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 deg F
• Port Type: Full
• Series: T-2006 Series
