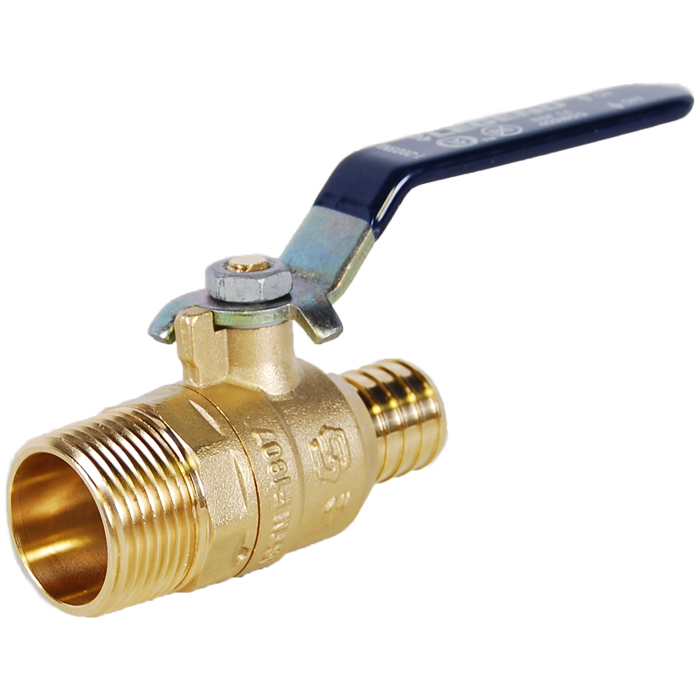

Legend Valve 101-591NL 3/4 T2005 NL MIPxPEX Ball VLV Replacement MPN

Product Description

The Legend Valve 101-591NL is a 3/4-inch lead-free ball valve designed for MIP to PEX connections. It is part of the T-2005NL series and features a full port design allowing for maximum flow. The valve can handle a pressure rating of 400 psi CWP.

• Lead-free design ensures suitability for no-lead potable water systems.
• DZR forged brass body provides resistance against corrosion.
• Compact body allows for installation in limited spaces.

Product Highlights

This valve is ideal for residential and commercial plumbing applications. The maintenance-free dual O-ring design prevents leaks, enhancing reliability. The self-cleaning chrome-plated ball prevents mineral build-up, extending the valve's lifespan.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Series: T-2005NL

Technical Specifications

• Ball Material: DZR Forged Brass
• Body Material: DZR Forged Brass
• Trim Material: DZR Forged Brass Stem and PTFE Seat
• End Style: MNPT x PEX
• Nominal Size: 3/4 inch
• Pressure Rating: 400 psi CWP
• Inlet to Outlet Length: 2.62 inches
• Top to Inlet Center: 1.57 inches
