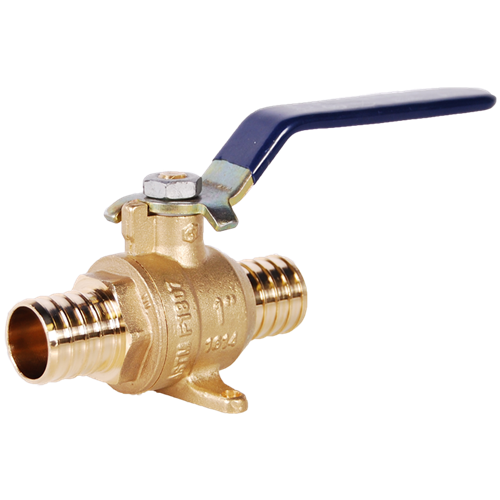

Legend Valve 101-578NL 1 inches T-2008 NL DE PEX Ball Valve

Product Description

The LEGEND VALVE 101-578NL ball valve, from the T-2008NL series, features a lead-free drop ear design suitable for potable water installations. Constructed with dezincification-resistant (DZR) forged brass, it withstands corrosion from various water conditions. The forged brass build is compact and robust, ideal for confined spaces. A maintenance-free, dual O-Ring stem design eliminates the need for nut tightening.

• Lead free design suitable for all no-lead potable water installations
• Integral drop-ear body design permits stable mounting, eliminating tubing flex
• Dezincification-resistant (DZR) forged brass resists corrosion

Product Highlights

Durable, compact ball valve with a lead-free design, ideal for potable water systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-578NL
• Country of Origin: China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: DZR Forged Brass
• Domestic/Import: Import
• End Style: PEX
• Inlet to Outlet Length: 3.23 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 400 psi CWP
• Series: T-2008NL
• Top to Inlet Center: 1.97 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Type: Drop Ear
• Manufacturer: LEGEND VALVE
• Connection Type: PEX x PEX
• Ratings: Max Temp 250 , 400 CWP (Exceeds the pressure rating of PEX)
