Legend Valve 101-577NL 3/4 T-2008 NL DE PEX Ball Valve

Product Description

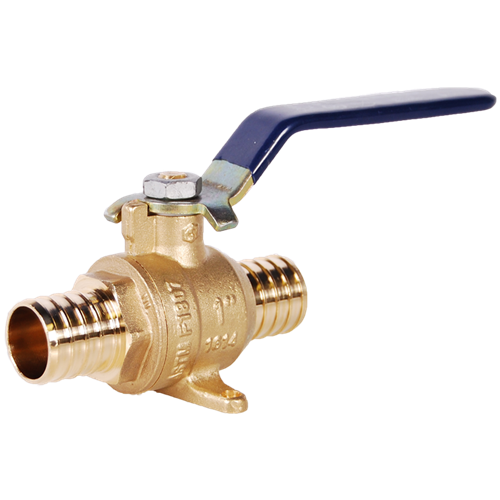

The LEGEND VALVE 101-577NL is a lead-free drop ear ball valve. This 3/4 inch nominal size valve features PEX end style and is suitable for potable water installations. The dezincification-resistant forged brass resists corrosion from exposure to various water conditions. It has a full port and a pressure rating of 400 psi CWP.

• Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
• Integral drop-ear body design permits stable mounting with two screws (not included), eliminating tubing flex during valve operation and the need for separate tubing braces
• Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions

Product Highlights

Durable forged brass construction makes it ideal for confined tubing installations. Maintenance-free dual O-Ring, Blow-out proof stem design eliminates the need for periodic nut tightening.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-577NL
• Country of Origin: China

Technical Specifications

• Ball Material: Polished Chrome Forged Brass
• Body Material: DZR Forged Brass
• End Style: PEX
• Inlet to Outlet Length: 2.62 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 400 psi CWP
• Series: T-2008NL
• Top to Inlet Center: 1.57 in
• Trim Material: Forged Brass Stem and PTFE Seat
• Type: Drop Ear
• Size: 3/4"
• Configuration: PEX (F1807) x PEX (F1807)
• Pipe Size: 3/4 in
• Connection Type: PEX x PEX
• Standards: 200 CWP, Max Temp 250 F
• Product Type: Ball Valve
• Finish: No Finish Group
