Legend Valve 101-574NL 2 inches T-2006 NL Pex Ball Valve

Product Description

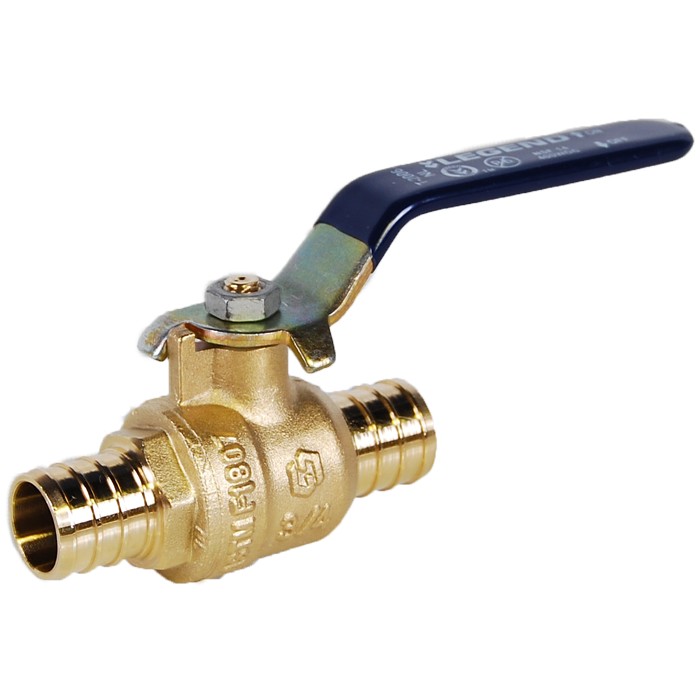

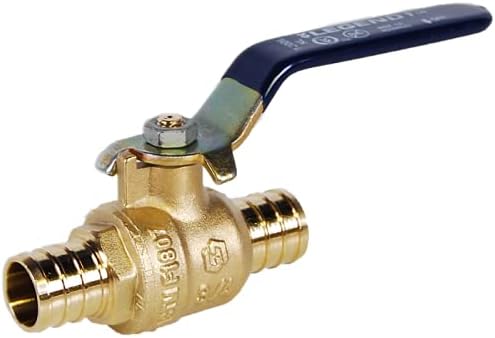

The Legend Valve 101-574NL is a lead-free ball valve from the T-2006NL series, designed for PEX connections. It features a full port and T-handle actuator. Constructed with a forged brass body, it meets ASTM F1806 ANSI/NSF 14/61-G IAPMO Certified UPC standards and has a pressure rating of 400 psi CWP.

• Lead Free
• Full Port
• T-Handle Actuator

Product Highlights

Durable forged brass ball valve with PEX connections, ideal for potable water installations.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 101-574NL
• Country of Origin: China

Technical Specifications

• Actuator Type: T-Handle
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: PEX
• Nominal Size: 2 in
• Port Type: Full
• Pressure Rating: 400 psi CWP
• Series: T-2006NL
• Manufacturer: Legend Valve
• Size: 2"
• Standards: 200 CWP, Max Temp 250°F
• Connection Type: PEX x PEX
• Country of Origin: China
• Item dimensions L x W x H: 8.1 x 3.55 x 2.35 inches
• Number of Items: 1
• UPC: 662545114972
• Manufacturer Part Number: T-2006NL
• Item Type Name: PEX Ball Valves
• Included Components: Valve
• ASIN: B0FLKL5WSK
• MFR #: 101-574NL
• Zoro #: G1791206
• No-lead brass: per current lead-free regulations
• Connection Size: 2 in.
• Finish: Forged Brass
• Height: 2.35 in.
• Length: 8.10 in.
• Sub Type: PEX Crimp Valves
• Type: PEX Valves
• Width: 3.55 in.
