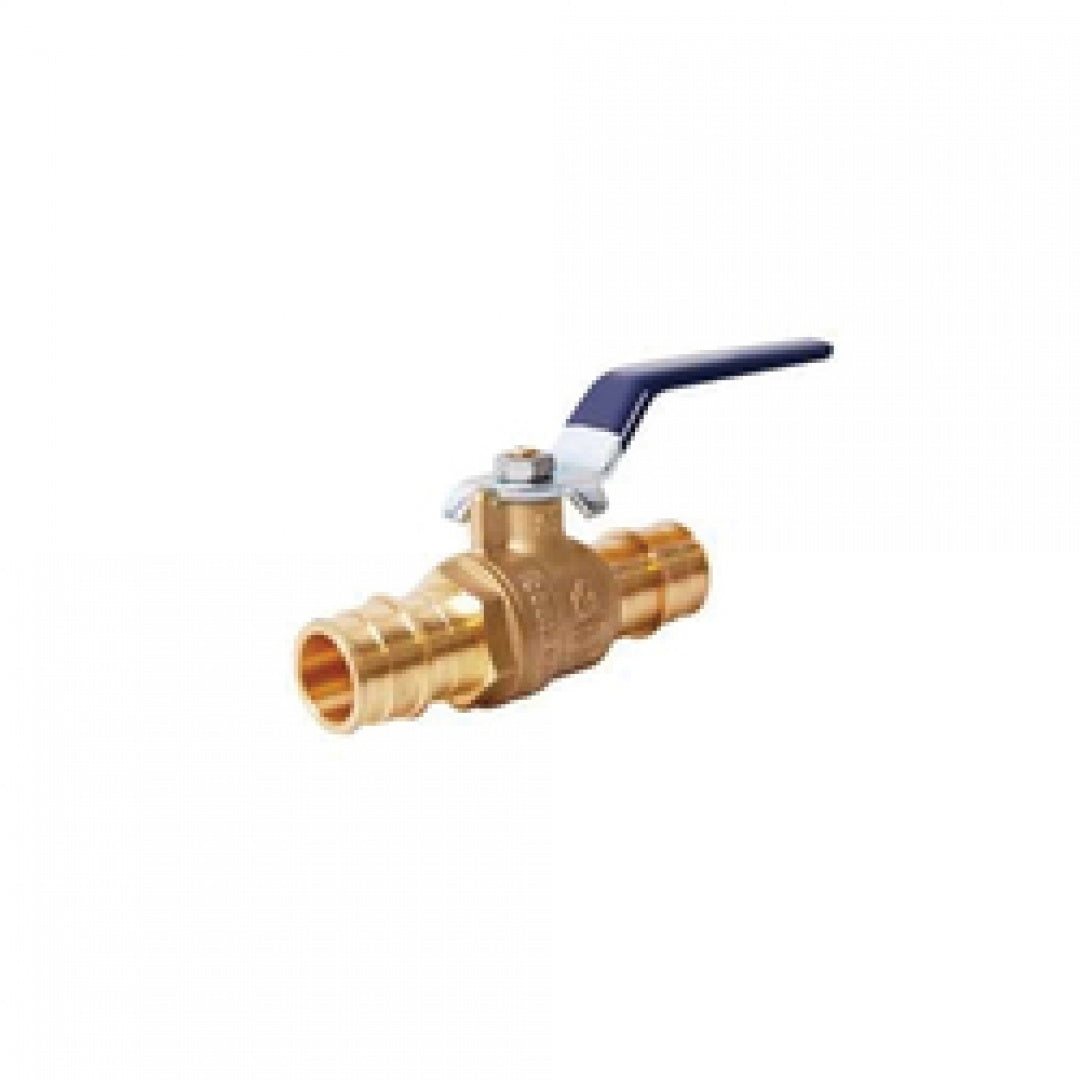

LEGEND VALVE 101-549NL 2-1/2 T-1960NL PEX BALL VALVE

Product Description

The LEGEND VALVE 101-549NL is a 2-1/2 inch T-1960NL PEX ball valve designed for effective water flow control. This ball valve features PEX F1960 end style and operates at a maximum pressure of four hundred psi.

• Constructed from corrosion-resistant DZR forged brass.
• Self-cleaning stainless steel ball reduces mineral buildup.
• Designed with a blowout-proof stem for enhanced sealing performance.

Product Highlights

This valve is ideal for plumbing applications where reliability and durability are critical. Its design ensures a secure fit with standard cold expansion rings.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• UPC: 662545129822

Technical Specifications

• Actuator Type: Handle
• Ball Material: 304 Stainless Steel
• Body Material: DZR Forged Brass
• Domestic/Import: Import
• End Style: PEX F1960
• Inlet to Outlet Length: 8.8 inches
• Nominal Size: 2-1/2 inches
• Orifice Size: 2.01 inches
• Pressure Rating: 400 psi CWP Non Shock
• Series: T-1960NL
• Softgoods Material: NBR/PTFE
• Top to Inlet Center: 3.04 inches
• Trim Material: Forged Brass/PTFE
