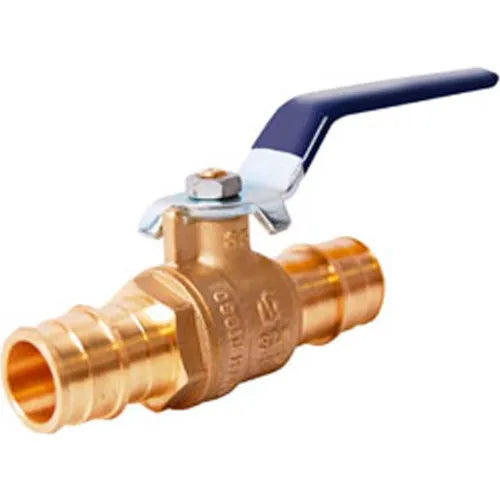

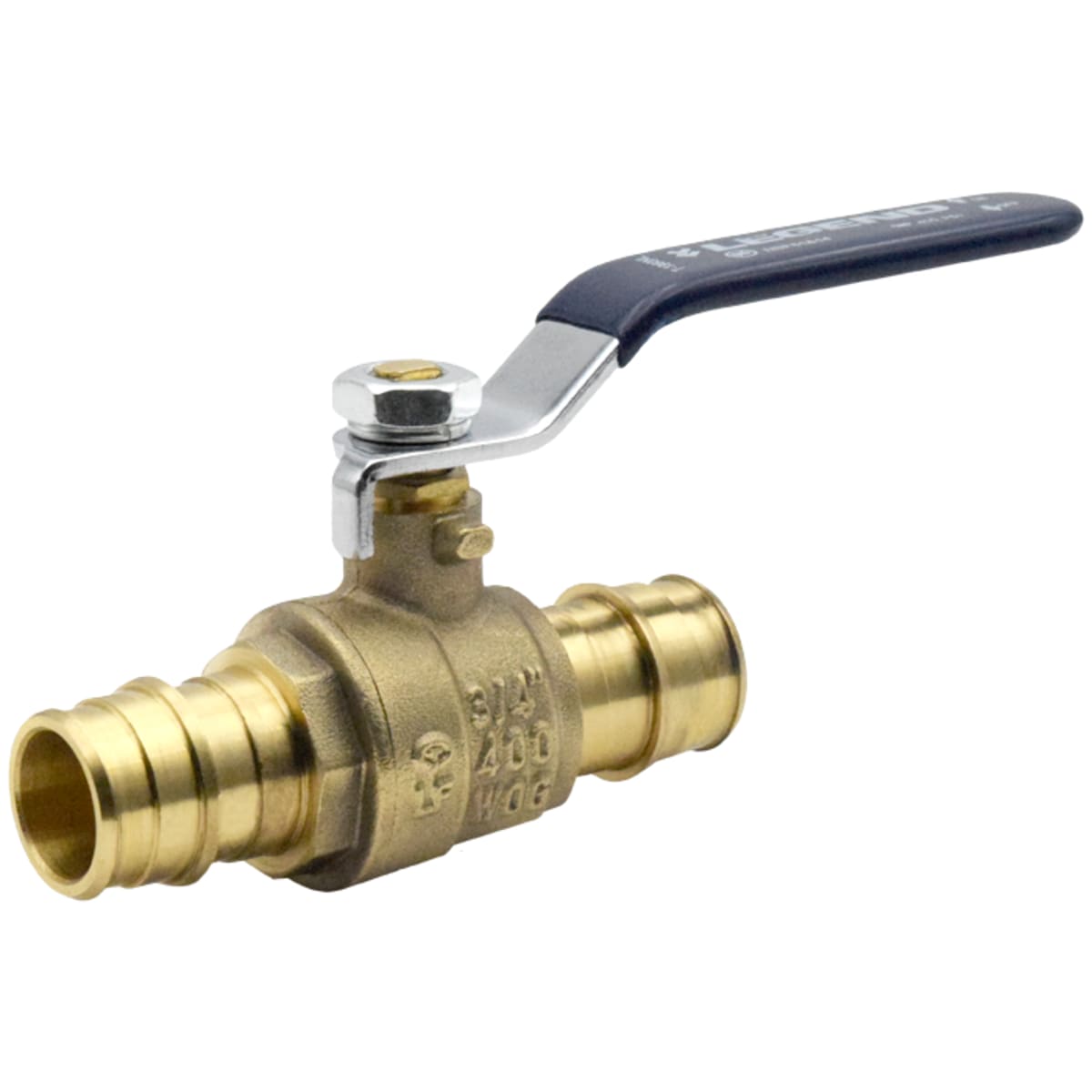

Legend Valve 101-543NL T-1960nl No Lead, DZR Forged Brass Cold Expansion Pex Ball Valve - 1/2 in

Product Description

The Legend Valve 101-543NL T-1960NL is a no lead forged brass PEX ball valve with barbs designed for cold expansion (ASTM F1960) installation. Compatible with both PEX and PERT pipe, it features a maintenance-free design with a dual O-ring stem. Ideal for potable water installations.

• No Lead, DZR Forged Brass
• Cold Expansion PEX (F 1960)
• Compatible with both PEX and PERT pipe

Product Highlights

Maintenance-free ball valve with a dual O-ring stem design. Dezincification-resistant forged brass resists corrosion.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 101-543NL
• Country of Origin: China

Technical Specifications

• Warranty: 1 yr
• Brand: Legend Valve
• Ratings: 400 CWP
• Size: 1/2 in
• Valve Type: Ball
• Width: 1-2/3 in
• Height: 1-2/3 in
• Length: 4-5/7 in
• Weight: 0.3 lbs
• Configuration: PEX x PEX
• Package Quantity: 1
• Manufacturers Part Number: 101-543NL
• Product UPC: 662545114521
• Product Type: Ball Valve
• Type of Material: Forged Brass
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: PEX
• Finish: Polished Chrome
• Inlet to Outlet Length: 2.72 in
• Media: Water
• Nominal Size: 1/2 Inch x 1/2 Inch
• Port Type: Full
• Pressure Rating: 400 psi
• Series: T-1960NL
• Softgoods Material: EPDM/NBR Rubber
• Top to Inlet Center: 1-1/2 in
• Trim Material: Brass Stem and PTFE Seat
• End Connection: Cold Expansion PEX x Cold Expansion PEX
• End to End Distance: 2.58 Inch
• Stem Material: UNS C46500 Forged Brass
• Seat Material: PTFE
• Seal Material: EPDM Stem O-Ring
• Handle Material: Zinc Plated Steel
• Application: Commercial, Drinking Water System
• Applicable Standard: NSF/ANSI 14/16/372, ASTM F1960, UPC/IAPMO, ISO 9002
• Lead-Free: Yes
• Material: No Lead Brass
• Connection_Type: F1960 x F1960
• Compatible Brand: Legend
• Housing Material: Brass
• Compatible Model: 101-543NL
• MPN: 101-543NL
• Model: 101-543NL
• Diameter: 1/2 in
• Country of Origin: China
• Max Temp: 250°F
• Connection Type [Specifications]: PEX x PEX
• Standards [Specifications]: 400 CWP
