Product Description

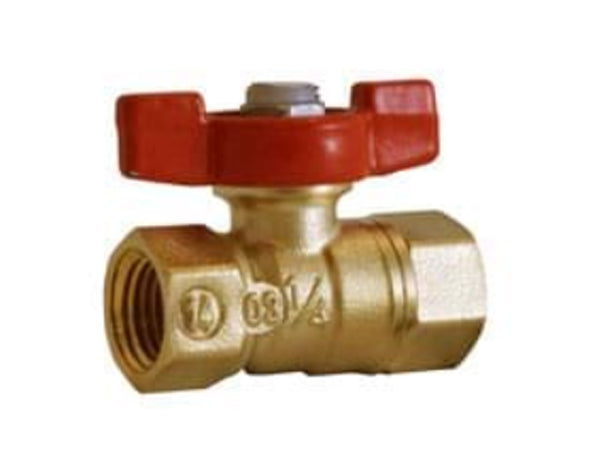

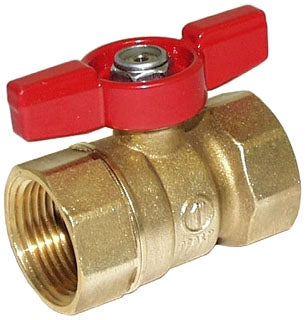

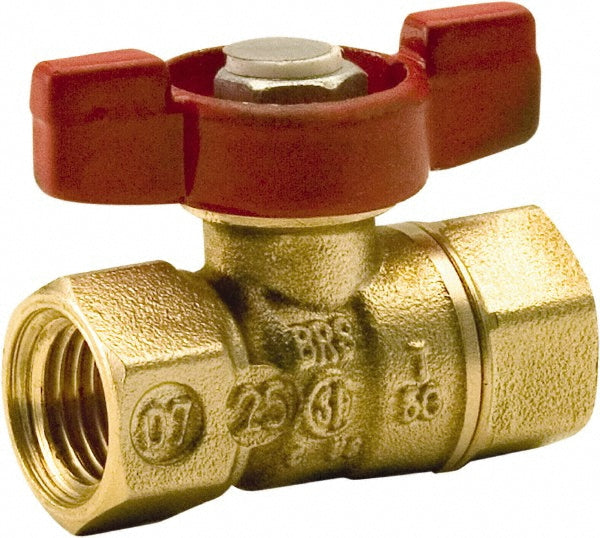

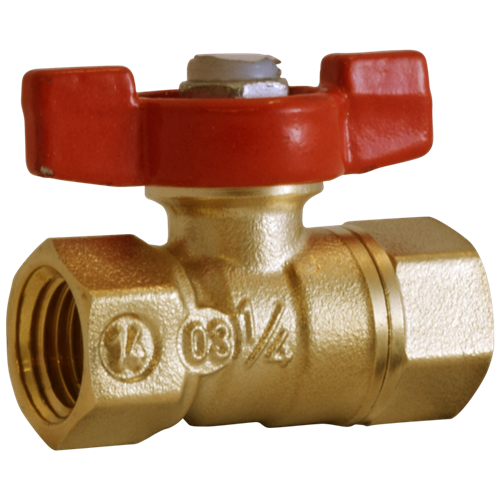

The LEGEND VALVE 101-541NL T-800T No Lead Ball Valve is a lead-free ball valve with a 1/4 inch nominal size and FNPT end style. This valve is suitable for any water supply shut-off application. It features a T-handle actuator and a forged brass body, designed for durability and efficient operation.
- 125 psi working steam pressure
- NSF 61-G certified
- Features a T-handle actuator
Product Highlights
This lead-free forged brass ball valve is ideal for water supply shut-off applications. It features a T-handle, FNPT end style, and is rated to 400 psi CWP.
Product Information
Standard Information
-
Brand: LEGEND VALVE
-
Manufacturer Part Number: 101-541NL
-
Country of Origin: Italy
Technical Specifications
-
Actuator Type: T-Handle
-
Body Material: Forged Brass
-
Domestic/Import: Import
-
End Style: FNPT
-
Nominal Size: 1/4 in
-
Pressure Rating: 400 psi CWP
-
Series: T-800TNL
-
Manufacturer: LEGEND VALVE
-
Ratings: 125 WSP
400 CWP
-
Size: 1/4"
-
Configuration: FNPT x FNPT
-
Valve Type: Ball; Standard
-
Pipe Size: 1/4
-
Valve Structure: 2-Piece
-
End Connection: FNPT x FNPT
-
Port Type: Standard
-
Handle Type: T-Handle
-
Steam Pressure Rating (psi): 125
-
Thread Size: 1/4 in
-
Seal Material: Polytetrafluroethylene
-
Lead Free: Yes
-
For Use With: Any Water Supply Shut Off Application
-
Product Type: Ball Valve
-
Additional Part Number Information: Equivalent Part Number: 101541NL
-
Supplies Depot Part Number: 1121518
