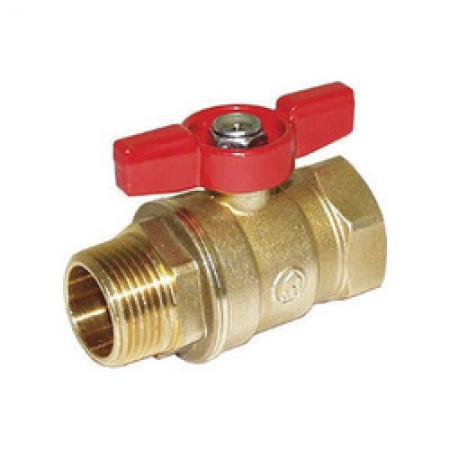

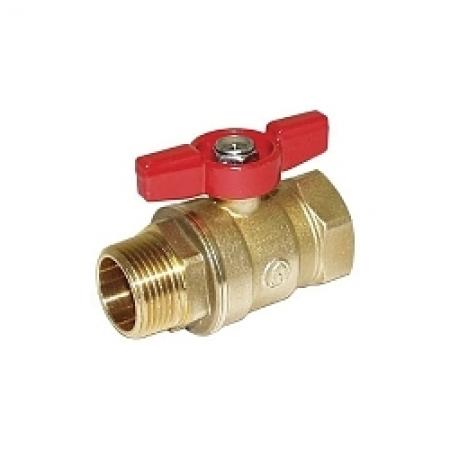

Legend Valve 101-534 3/4 T-900 MXF-T Ball Valve

Product Description

The Legend Valve 101-534 is a three-quarter inch T-900 MXF-T ball valve. It features male NPT and female NPT end styles. This valve is made from durable materials, making it suitable for a range of plumbing applications. It has a polished chrome forged brass ball and is designed for high pressure, rated at six hundred psi CWP.

• Durable forged brass body
• Large port for improved flow
• Bottom loaded blow-out proof stem for maintenance-free use

Product Highlights

Ideal for confined piping installations, this valve has a T-handle actuator for ease of operation.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Series: T-900MxF-T

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Dimensions: 0.69 inches height
• Domestic/Import: Import
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 2.87 inches
• Nominal Size: 3/4 inches
• Port Type: Large
• Pressure Rating: 600 psi CWP
• Top to Inlet Center: 1.62 inches
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
