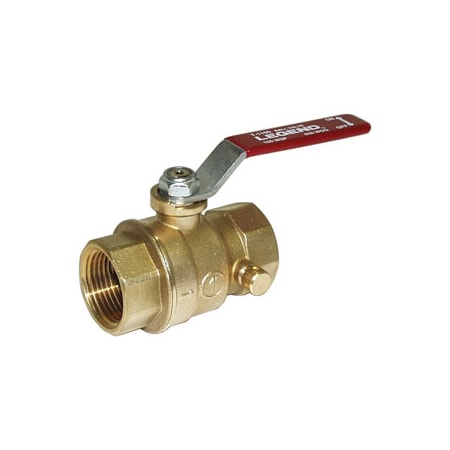

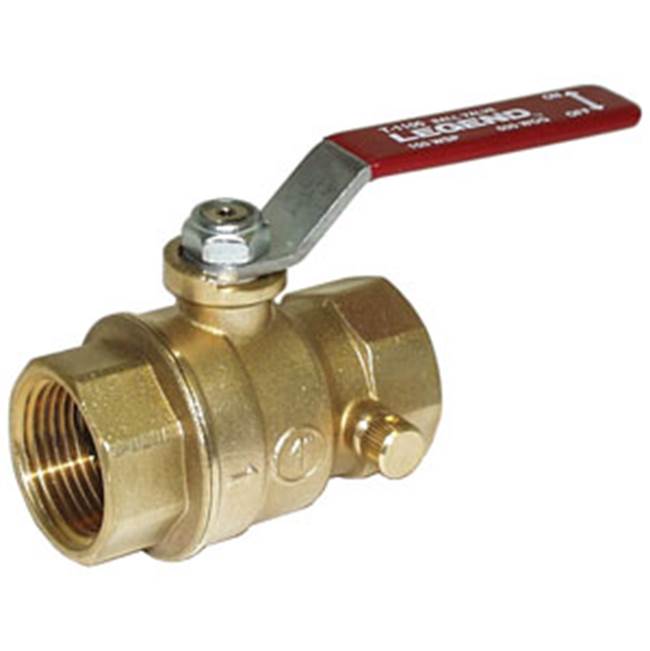

Legend Valve 101-504NL 3/4 inches T-1100 Ball Valve-No Lead

Product Description

LEGEND VALVE 101-504NL is a 3/4 inch T-1100NL Series lead-free ball valve designed for potable water installations. This full port valve features a durable forged brass body, a polished chrome forged brass ball, and TFM PTFE seats. It is rated for 500 psi CWP and has a 0.79 inch orifice. The valve includes a waste drain for maintenance or freeze-up prevention, making it a robust alternative to conventional stop and waste valves.

• Lead-free design for potable water installations, complying with all lead-free plumbing laws.
• Durable forged brass body with a bottom-loaded, blow-out proof stem.
• Features a waste drain for maintenance or to prevent freeze-up.

Product Highlights

Lead-free forged brass full port ball valve with drain, rated for 500 psi CWP, suitable for potable water.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 101-504NL
• Country of Origin: Import

Technical Specifications

• Series: T-1100NL
• End Style: FNPT
• Port Type: Full
• Manufacturer: LEGEND VALVE
• Nominal Size: 3/4 in
• Orifice Size: 0.79 in
• Ball Material: Polished Chrome Forged Brass
• Body Material: Forged Brass
• Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat
• Domestic/Import: Import
• Pressure Rating: 500 psi CWP
• Softgoods Material: Fluorocarbon
• Top to Inlet Center: 1.87 in
• Inlet to Outlet Length: 2.35 in
• Product Type: Ball and Waste Valve
• Actuation Type: Lever Handle
• Standards: ANSI/NSF 61, ANSI/ASME B1.20.1, ISO 9002
• Application: Plumbing, Industrial, Commercial, Hydronics
• Handle Material: ASTM A510 UNS G10060 Dacromet Coated Steel
• Finish: No Finish Group
